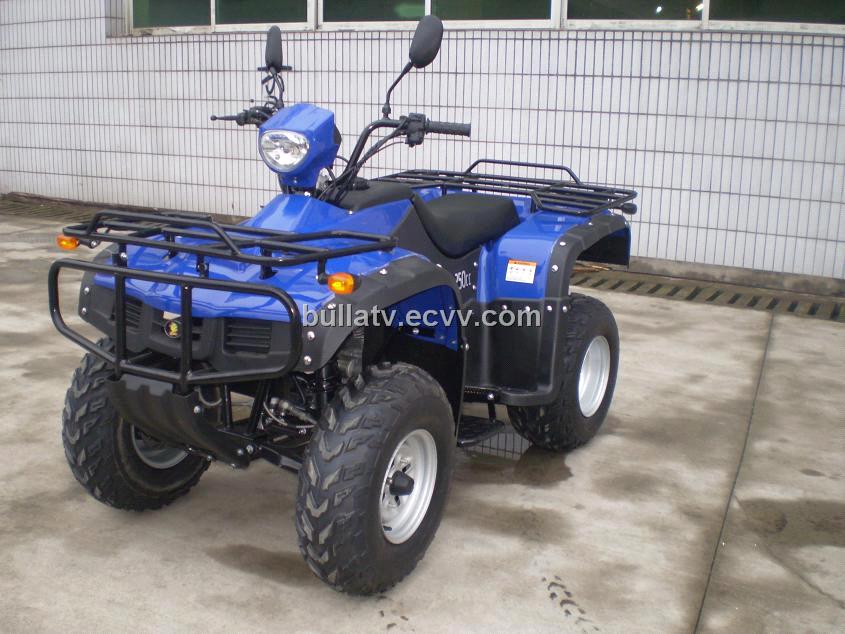

Sell 250CC EEC ATV(SJ250ST)

Detailed Product Description

Model:SJ250ST (EEC)

Main Feature:250cc, automatic clutch,electric/pull start,acyclic gear,inner reverse gear,shaft drive,single rocking arm,front & rear disc brake,meter in both in international and England stand,turning light and horn.

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:automatic
Ignition method:C.D.I.
Start method:electric/pull
Transmission:shaft
Displacement(ml):250
Bore*stroke(mm):71*58
Compression ratio:8.7:1
Rated power(kw/r/min):11/7000±500
Maximum torque(N.m/r/min):16/6000±500
Lubrication:splash
Gear:5
Dimensions(L*W*H)(mm):1940*1050*1150
Wheel base(mm):1160
Seat height(mm):835
Min.turning radius(mm):2900
Min.ground clearance(mm):150
Rider capacity:2
Brake:front&rear disc
Front wheel:23*7-10
Rear wheel:22*10-10
Fuel tank capacity(L):12.6
Engine oil capacity(ml):900
Climbing capacity:30
Max.load(kg):165
Max.speed(kw/h):55
Net weight(kg):210
Gross weight(kg):240
