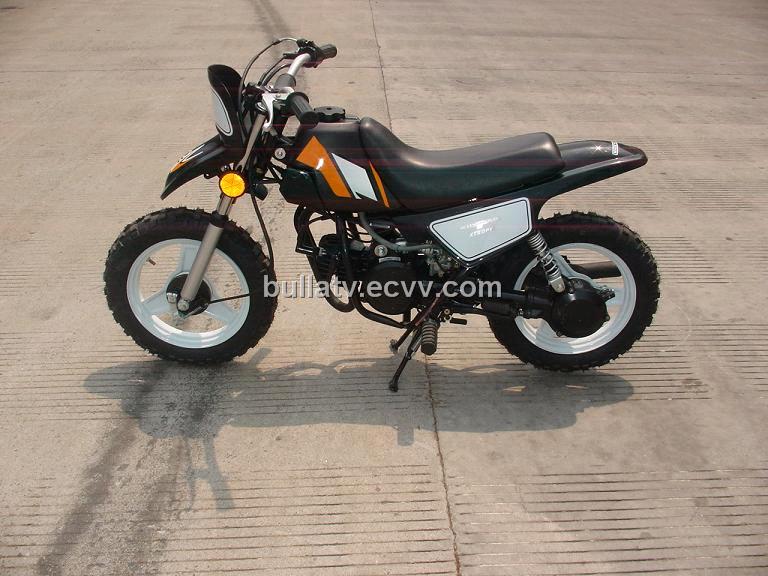

Sell 50CC Mini Dirt Bike, 2-stroke (SJ50PY)

Detailed Product Description

MODEL:SJ50PY

Main Feature:50cc, 2-stroke, kick start, front & rear drum brake, al-alloy wheel, shaft drive, CVT

Specifications:
Engine type:single cylinder,air cooling,2 stroke
Clutch method:CVT
Ignition method:C.D.I.
Start method:kick start
Transmission:shaft
Displacement(ml):50
Bore*stroke(mm):40*39.8
Compression ratio:6.0:1
Rated power(kw/r/min):1.98/5500±500
Maximum torque(N.m/r/min):3.7/6000±500
Lubrication:separation
Gear:CVT
Dimensions(L*W*H)(mm):1115*555*550
Wheel base(mm):870
Seat height(mm):530
Min.turning radius(mm):1500
Min.ground clearance(mm):100
Brake:front&rear drum
Front wheel:2.50-10
Rear wheel:2.50-10
Fuel tank capacity(L):3
Engine oil capacity(ml):350
Climbing capacity:e10
Max.load(kg):70
Max.speed(kw/h):50
Net weight(kg):50
Gross weight(kg):70
