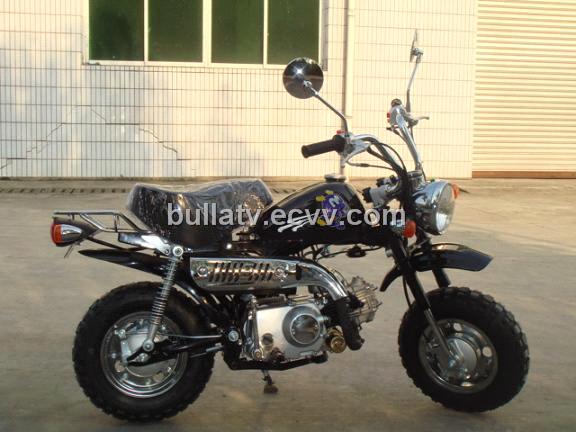

Sell 50CC/110CC Monkey Bike (SJ50QGY)

Detailed Product Description

Model:SJ50QGY

Main Feature: 50cc, 4 stroke, kick start, manual clutch, front&rear drum brake, al-alloy wheel.

Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual clutch
Ignition method: C. D. I.
Start method: Kick start
Transmission: Chain
Displacement(ml): 49
Bore*stroke(mm): 39*41.4
Compression ratio: 8.8: 1
Rated power(kw/r/min): 2.0/7500±500
Maximum torque(N. M/r/min): 2.5/6000±500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1355*600*865
Wheel base(mm): 945
Seat height(mm): 650
Min. Turning radius(mm): 1600
Min. Ground clearance(mm): 100
Rider capacity: 1
Brake: Front&rear drum
Front wheel: 3.50-18
Rear wheel: 3.50-8
Fuel tank capacity(L): 2.5
Engine oil capacity(ml): 800
Climbing capacity: e15
Max. Load(kg): 75
Max. Speed(kw/h): 40
Net weight(kg): 70
Gross weight(kg): 80
