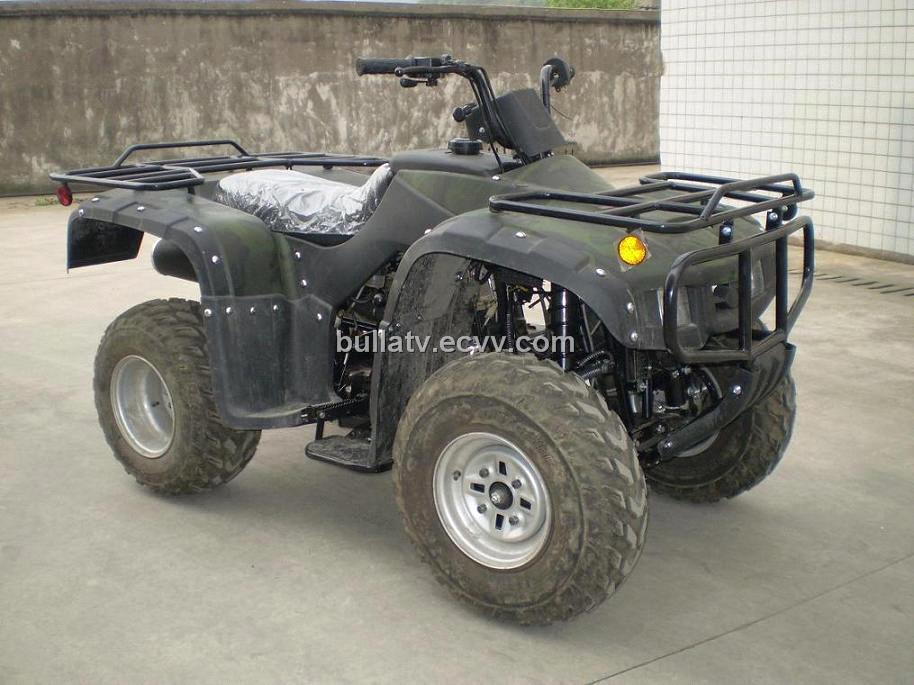

Sell 250CC CVT ATV (SJ250ST-3)

Detailed Product Description

Model:SJ250ST-3

Main Feature: 250cc,4 stroke, single cylinder, water cooling, GY6, electric start, inner reverse gear, shaft drive, single rocking arm, front & rear disc brake.

Specifications:
Engine type: Single cylinder, water cooling, 4 stroke
Clutch: CVT
Ignition method: C.D.I.
Start method: Electric
Ransmission: Shaft
Displacement(ml): 250
Bore*stroke(mm): 72*60
Compression ratio: 10.0: 1
Rated power(kw/r/min): 12/7500±500
Maximum torque(N. M/r/min): 17/5500±500
Lubrication: Splash
Gear: 2 forward gear with reverse gear
Dimensions(L*W*H)(mm): 1940*1050*1150
Wheel base(mm): 1160
Seat height(mm): 820
Min. Turning radius(mm): 2900
Min. Ground clearance(mm): 140
Brake: Front & rear disc
Front wheel: 23*7-10
Rear wheel: 22*10-10
Fuel tank capacity(L): 12.6
Engine oil capacity(ml): 900
Climbing capacity:30
Max. Load(kg): 165
Max. Speed(kw/h):55
Net weight(kg): 210
Gross weight(kg): 240
