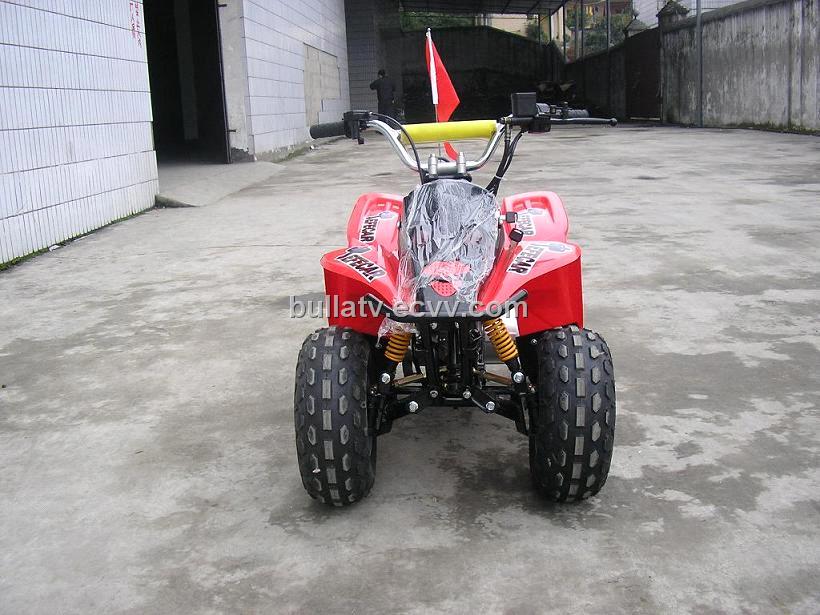

Sell 50CC Mini ATV (SJ50ST-7)

Detailed Product Description

Model:SJ50ST-7

Main Feature:50cc,4-stroke,electric start,upper located auto gear,chain drive,single A-arm,rear disc brake.

Specifications:
Engine type:single cylinder,air cooling,4 stroke
Clutch:automatic
Ignition method:C.D.I.
Start method:electric
Transmission:chain
Displacement(ml):49
Bore*stroke(mm):39*41.4
Compression ratio:8.8:1
Rated power(kw/r/min):2.0/7500±500
Maximum torque(N.m/r/min):2.5/6000±500
Lubrication:splash
Gear:automatic gear
Dimensions(L*W*H)(mm):1080*640*750
Wheel base(mm):680
Seat height(mm):570
Min.turning radius(mm):1800
Min.ground clearance(mm):90
Rider capacity:1
Brake:rear disc brake
Front wheel:145/70-6
Rear wheel:145/70-6
Fuel tank capacity(L):3
Engine oil capacity(ml):800
Climbing capacity:15
Max.load(kg):110
Max.speed(kw/h):30
Net weight(kg):90
Gross weight(kg):100
