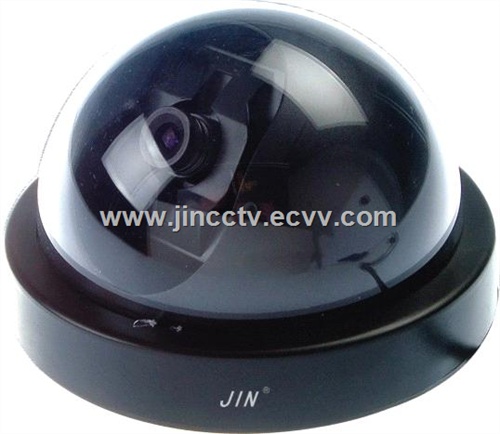

Color CCD Dome Camera

Detailed Product Description

pickup device	1/3",1/4 Sony color CCD ;1/3, 1/4 sharp color CCD
effective pixels	PAL 512(H) x 582(V)NTSC 512(H) x 492(V)
sensing area	3.6mm x 2.7mm
signal system	PAL/NTSC
horizontal resolution	420 TVL
Sync signal	INT sync
AGC control	auto
scanning system	interlaced 2:1
(H)Frequency	PAL 15.625KHz, NTSC 15.734KHz
(V)Frequency	PAL 50Hz, NTSC 59.94HZ
lens	3.6mm/ 6mm selectable(fix electronic shutter2.0)
white balance	auto tracing
mirror control	Normal/Reverse
electronic shutter	PAL 1/50 to 1/100000 (second) NTSC 1/60 to 1/100000(second)
S/N ratio	more than 48db
minumum illumination	0Lux
Gamma :	0.45
video ouput	1.0Vp-p, 75-OHM
power supply	DC 12V
operation current	120mA+100mA)
dimension	118X78MM

Post Date:	5/19/2008
Expiry Date:	5/14/2009
