Annso Technology Co.,Ltd

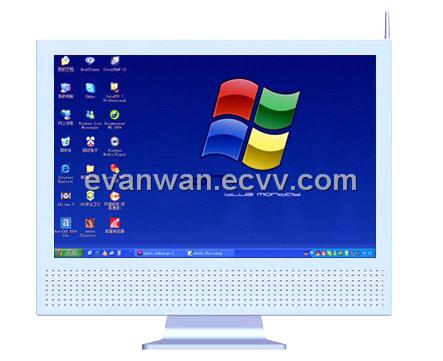

22 inches All in one Computer PPC-22WM
All in one computer, 22 Inch All-in-one Computer,22 Inch wide screen All in one computer
The display is the computer .The entire computer, support Micro-ATX and MINI-ITX form factor main board, s lim type optical drive, hard disk, card reader, speakers and even the power supply integrates inside a dazzling display. It combines all your life, music, photos, movies, email…. within a monitor-based space. You may enjoy the space you saved, the enchanting screen you earned and the comfortable user interface you are familiar to.
Mainboard
Standard Micro-ATX and Mini- ITX main board
Processors
Intel / AMD / VIA
Memory
Upgradable standard SDRAM / DDR /DDR2 memory
HDD
* 2.5" x 1
Optical Device
*Slim CDROM/DVDROM/Combo(DVD+CDRW)DVD ± RW
Display
Display Type : 22" wide screen WSXGA TFT LCD Resolution : 1680 x 1050 Max.color : 16.7M Luminance : 300 cd/m2 View Angel : 170°(H) , 160°(V) Pixel Pitch : 0.282 x 0.282 mm Contrast Ratio : 700 : 1 Response Time : 5 ms Power Consumption : 5.74 W LCD MTBF : 50,000hrs
Expansion Slots
*1 x PCI slot or 1x PCI-E
Speaker
*Built-in 2x stereo speakers(2w)
Multi-Media Card Reader
*CF/Micro Drive/MS Pro(Due)/SM/SD/(RS)MMC/XD(Optional)
Wireless LAN
32bit PCI card Interface. (Optional),Support 64 and 128 bit WEP Encryption *802.11b:11Mbps Up to 180m(Outdoor), 35- 60 m(Indoor) *802.11g:54Mbps up to 50m(Outdoor),20m(Indoor)
Touch Screen
Internal USB or RS-232 interface controller (optional) Type: Analog resistive type : 25VDC ≥ 20MΩ Resolution: continuous Light transmission: 80% or more Power consumption:<5V @1mA Surface hardness : 3H Operating force : ≤100g Life expectancy : 35 Million
Power Supply
INPUT: 115~2 3 0VAC,50/60Hz OUTPUT: ATX 22 0W with active PFC +5V@ 13 A , +12V@ 16A
Safety
CE/FCC
Measurements
Length: 53.5 cm; Wide: 38. 3 cm; Thick: 9.55 cm(Without the stand)
Weight
PPC-22WM
22" wide screen all in one lcd pc Platform , with 220W ATX Power Supply
PPC-22WMT
22" wide screen all in one lcd pc Platform with touch screen, with 220W ATX Power Supply
PCI-E Kits
PCI-E riser card + fixed bracket kits
