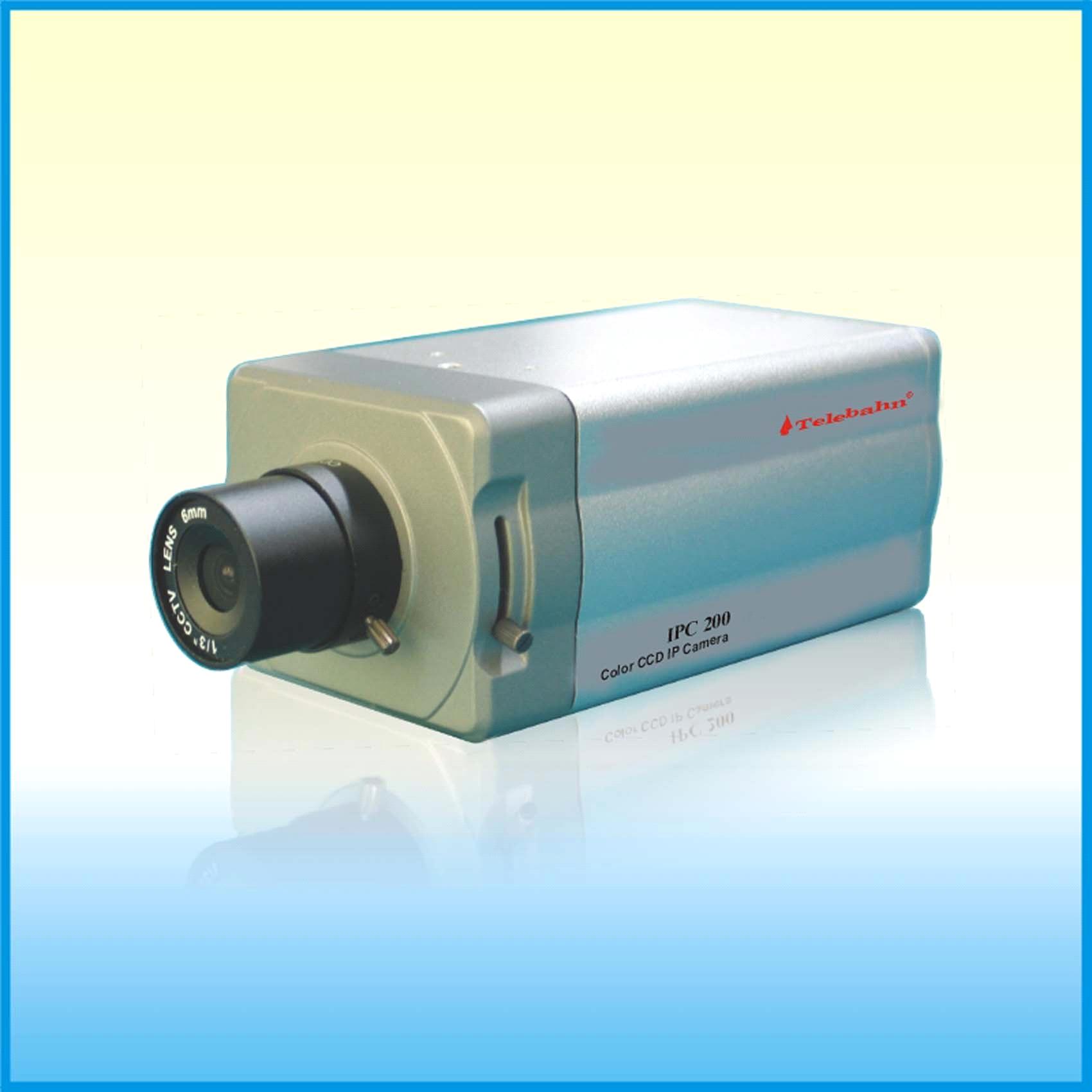

CCTV Color CCD IP Camera

Detailed Product Description

Main Features:

◎ Built-in web server, allowing direct access to the Internet

◎ Built-in microphone

◎ Real time motion detection, e-mail notification and ftp images optional

◎ Double password protection

◎ Automatic network condition detection & adjustment

◎ Max. 20 viewers simultaneously

◎ Multi-window viewer software (IPS 16) available

Specifications:

SYSTEM
Video compression		MPEG-4
Image resolutions	CCD ( Image sensor)	D1, NTSC: 720480 @ 30fps; PAL: 720576 @ 25fps
		CIF, NTSC: 352240 @ 30fps; PAL: 352288 @ 25fps
	CMOS ( Image sensor)	VGA, NTSC / PAL: 640*480 @ 30fps
		QVGA, NTSC / PAL: 320*240 @ 30fps
Video adjustment		Brightness, Contrast, Saturation, Sharpness and Hue
Network Interface		Ethernet (10/100 Base-T)
Audio compression		G.711 PCM, 64Kbps; G.7126 ADPCM, 16-40Kbps
Multi-window display		Max. 16 videos (optional)
Protocols		ARP, TCP/IP, HTTP, FTP, SMTP, DHCP client, NTP, DDNS, UPnP, IEEE802.11b (optional)
System required		Microsoft IE 5.x or above running on Windows 2000/XP/2003
Firmware upgrade		HTTP online upgrade mode

MODEL	IPC 200P2	IPC 200S2	IPC 200S8
Image pick-up device	1/4” SHARP color CCD	1/3” SONY color CCD
TV system	NTSC / PAL
Number of pixels	NTSC: 510(H)492(V); PAL: 500(H)582(V)		NTSC: 768(H)492(V) PAL: 752(H)582(V)
Horizontal resolution	420 TV lines		480 TV lines
Min. illumination	0.8 Lux / F 1.2		0.1 Lux / F 1.2
Scanning system	NTSC: 525 lines, 60 field / sec; PAL: 625 lines, 50 field / sec
Gamma characteristic	0.45
Electric shutter time	Auto, NTSC: 1/60~1/100,000 sec; PAL: 1/50~1/100,000 sec
S/N ration	> 48dB
Sync system	Internal synchronization
Video output	1Vp-p, 75Ω
Power Supply	DC 12V/500mA
Working Temperature	-10℃ ~ +50℃/RH 95% max
Net Weight	450g
Dimension	158mm70mm63mm
