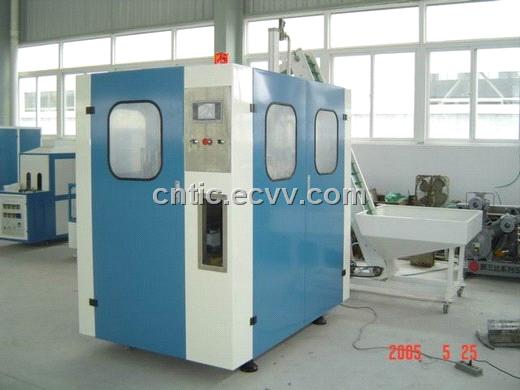

CM-A2 automatic bottle blowing machine

Detailed Product Description

CM-A2 Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Product Feature
Reasonable design, full automatic control, save power and labor. Adopt high quality Components.
Feeding system carries the performs by robot automatically.
Infrared oven heater adopts the quartz lamp to heat the PET tube.
Fully automatic process with low investment, high efficiency ,quick and safe operation ,easy for trouble -shooting , maintenance and other benefits.
We have perfect service after sales

Product Specification / Models
1. TYPE : Automatic Vertical Top Blow
2. MODEL : CM-A2
3. BLOW : Top
4. MATERIAL : PET PREFORM
5. WEIGHT OF MATERIAL : 9 gms to 60gms
6. BLOWING CAPACITY : 30cc to 2000cc
7. PRODUCTION RATE : 2000BPH for 500ml bottle
1800BPH for 750ml bottle
1500BPH for 1000ml bottle
1200BPH for 2000ml bottle
8. CONTROL : full computer control with Human/machine interface and automatic fault diagnosis/ alarm, electric eye counting, infared temperature contro. All parts are of international well-known brands.
9. MOULD ARRANGEMENT : Vertical Arrangement With Stationery and Shuttle Movement.
10. BLOWING HEADS : 2 Nos.
11. MOULDS : 2 Nos.
12. BLOWING TIME : 1.1-3.5 Sec
13. TOTAL CYCLE : 3-4.5Sec
14. SIZE OF THE MACHINE : H – 1980, W – 1280, L – 1920
16. ELECTRICAL REQUIREMENTS : 380/220v,50-60Hz.

Application
an ideal equipment to make mineral water bottle, shampoo bottle, washing bottle, edible oil bottle, wine bottle, pharmacy container, milk bottle and other daily usage bottles and containers from 50ml to 2L with different shape and neck diameter
