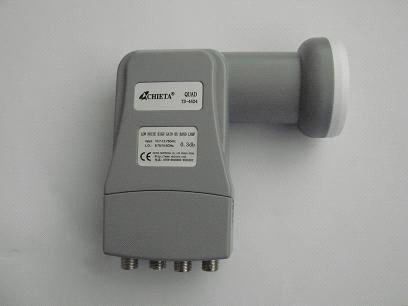

low noise band

  Input Frequency:10.7～12.75GHz

Output frequency:950～2150MHz

Output Connector: 75Ω F type

Output VSWR: 2.0: 1

LO Initial Accuracy (@ 25℃): ±1MHz

LO Temperature Drift (@ -40 ～ 60℃): ±3MHz

LO Phase Noise (@ 1KHz offset): －60dBc/Hz

                                  (@ 10KHz offset): －80dBc/Hz

                                  (@ 100KHz offset): －100dBc/Hz

Conversion Gain: 52 ～ 62dB

Gain Flatness (any 27MHz): ±0.5dB

Gain Variation (over operating band): ±5dB p-p (Max)

Output Power (1dB compression Point): 0dBm (Min)

Noise figure: 0.6dB (Typ)

Image Rejection: 40dB (Min)

Cross Pole. Isolation: 20dB (Min) 25dB (Typ)

DC Current Consumption: 210mA (Typ) 230mA (Max)

Band Switching: Low Band: 0KHz

                                   High Band: 22±4KHz tone

Reflector Type: Offset

F/D Ratio: 0.6dB

Feedhorn Mounting: 40mm (Standard Size)

Polarization Switching Voltage: Vertical: 11 ～ 14.2V

                                                             Horizontal: 15.5 ～ 20V

Spurious Response (@ 1700MHz): －58dBm (Max)

Operation Temperature: －40℃ ～ ＋60℃
