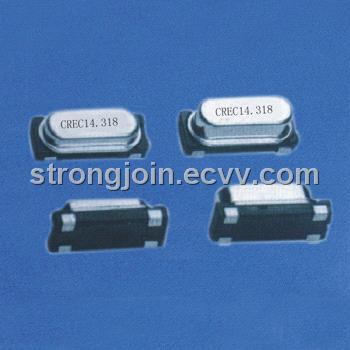

HC-49SX quartz crystal resonators

Detailed Product Description

This product is the surface mount which are suit for VPS, HA and IR. The properties of products designed will not be change of high temperature. They are widely used in the each kind small thin portable computers and communication electronic products.

Type: 49sx1, 49sx2, 49sx3, 49sx4

Frequency range: 3.000-37-100MHz, 27-100 MHz, 80-100 MHz

Vibration mode: AT Fundamental, 3^rd overtone, 5^th overtone

Resonance resistance(Ω): 300-10Max, 50-30Max,80-40Max

Frequency tolerance at 25 oC: ±10ppm-± 50ppm

Shunt capacitance: 7PF Max

Load capacitance: 6-100PF or series

Insulation resistance ＞500MΩ/DC/100V±10V

Drive level: 0.01mW-1mW

Aging: ±3ppm/year

Other special specifications are designed according to customer’s requirement. More details can be available.
