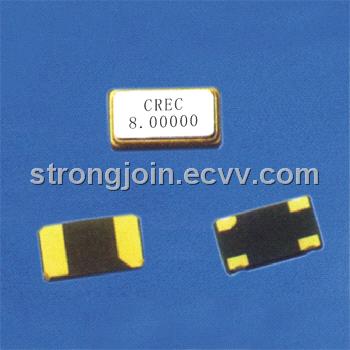

MD0705/0603/5032/3225 quartz crystal resonators

Detailed Product Description

Frequency range: 10-45MHz, 30-100 MHz

Vibration mode: AT Fundamental, 3^rd overtone

Resonance resistance(Ω): 100-30Max, 80-10Max

Frequency tolerance at 25 oC: ±10ppm-± 50ppm

Shunt capacitance: 7PF Max

Load capacitance: 6-100PF or series

Insulation resistance ＞500MΩ/DC/100V±10V

Drive level: 0.01mW-1mW

Aging: ±3ppm/year

Other special specifications are designed according to customer’s requirement. More details can be available.
