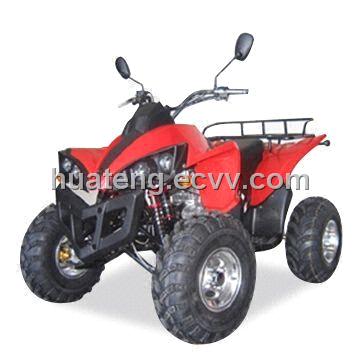

EEC approved 300cc Quad(HA300S-8)

Prev Product

Next Product

Detailed Product Description

1) Engine type: 300cc,single-cylinder, air-cooled and four-stroke
2) Ignition mode: CDI
3) Start mode: electric
4) Transmission mode: chain
5) Break type(F/R): disc/disc
6) Front hanging: double arm-swing
7) Transmission: four forward gears with one reverse gear, manual clutch
8) Parking trig: mechanical lock
9) Rated Power: 12.5kW/7,000rpm
10) Maximum torque: 20.2N.m/6,000rpm
11) Fuel tank capacity: 10.8L
12) Maximum speed: 95kph
13) Power source: 12V, 20Ah
14) Climbing degree: 20
15) Cylinder size: 75 x 62mm
16) Displacement: 274mL
17) Minimum turning radius: 1,750mm
18) Engine oil: 2L
19) Maximum number of riders: 1
20) Lubrication: press splash
21) Compression proportion: 8.67: 1
22) G.W./N.W.: 240/205kg
23) Conveyance: 12pcs/20'FCL;26pcs/40'FCL;39pcs/40'HP

Post Date:	7/30/2008
Expiry Date:	7/25/2009
