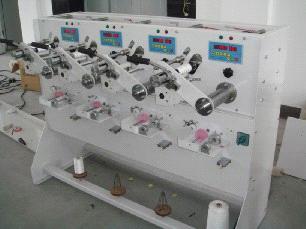

WINDING MASTER 706 HIGH SPEED SEWING THREAD WINDING MACHINE.
multi-function technical data:
1) computer yarn-length measurement counter.
bright led display,length measured by precision senor.
2) individual spindle control system
individual computer control each sindle and motor.have power lost data auto memory function.
3) no-touch yarn breaking detector..
high sensitive,auto spindle stop when yarn breaking.
4) individual lubricate control system..
step-motor precision control uniform lubricate apply and oil roller speed is adjustable.
5) electric-magnetic tensioner combined with machanical tensioner.
electric tension auto-adjustment according yarn length and begging and end finished to keep constant yarn tension.mechanical tension foe double ensure yarn tension.
6) winding drum yarn-guiding syetem。
advance yarn guide form reduce yarn breaking and high speed。
special treated smooth and resist wear and lower noise。
7）max speed:600m/min
8)Yarn traverse length:2”,3”,4”,5”,6”
