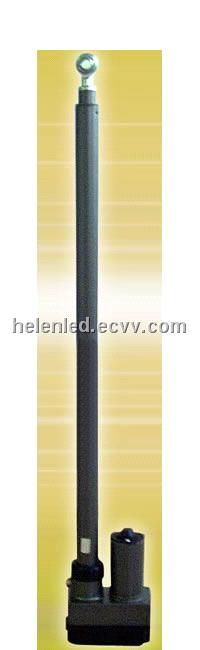

satellite antenna tracking system motor LACH+

Enhanced antirust quality,High performance & service life,High precisionHeavy duty bracket and static load capacity,Stroke length 24" 18" 12",Optimal stroke 21"-23" 14"-16" 9"-11",Static Load 2,940NLoad capacity 1,470N,Dynamic load 2,450 N,Speed(Non-load) 7.8mm/sec.,Resolution 1.26 pulse/mm,Input Voltage 24VDC,Load current d2.5A

Duty cycle 20%Stroke length:12"/18"/ 24"(inch)Voltage:12/24 /36 VDC,Packing spec. 90.5*31*17.5(cm)Weight 21.18kg/4pcsSensor type : Reed,Drive screw : Acme
