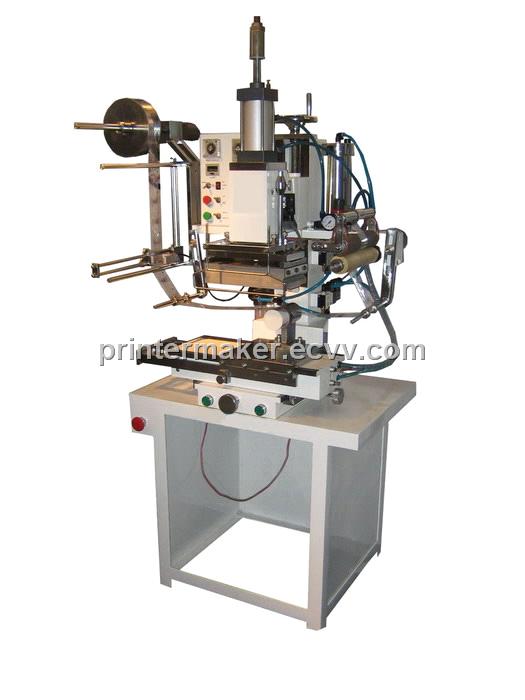

Flat/cylinder Hot stamping machine

Detailed Product Description

Colour Painted :	White
Specifications:	1.Size of stamping plate: 125×220 mm; 2.Heater Wattage: 1000W; 3.Stamping height adjustable range =180 mm; 4.Max. stamping diameter: For whole circle: 70mm For partial circle: 160mm; 5.Stamping temperature adjustable range: 0 - 300oC; 6.Stamping foil pulling length: =400 mm; 7.Stroke of stamping plate: 53 mm; 8.Max. stamping pressure: 600 kgf (7bar); 9.Max. stamping speed: 900 pcs/hr; 10.Power: 110/220V, 60/50Hz; 11.Air consumption: 100 litre/min; 12.Dimensions: 700 x 850 x 1600 mm; 13.Weight: 105 Kg;
Advantages:	1. Microprocessor control ; 2. Capable of adjusting the stamping pressure, the temperature and the speed; 3. Five-digit counter available; 4. Automatic back-and-front worktable ensures safe and quick operation; 5. Worktable slight adjustment ensure precision stamping; 6. Automatic foil feeding and collecting; 7. Safe protection device installed; 8. The stamping head height adjustable; 9. Shuttle stable shift ensure stamping cylindrical workpiece; 10. Stamping flat workpiece while uninstall the shuttle;
Package List:	Package dimension: 820×740×1560mm Gross weight: 130KG.
Customer :	1. Bousbaa co( Algeria) 2. Aerosol & Cosmetic works CC (Southafrica) 3. Industrial samart (Spain)
