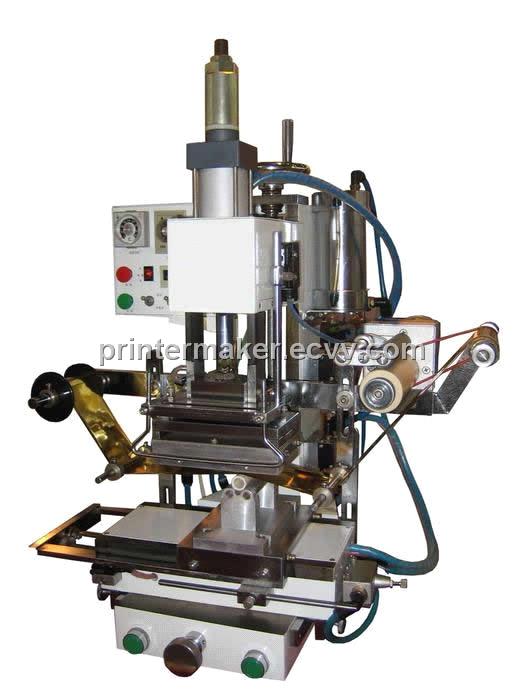

313 Flat/cylinder hot stamp machine

Detailed Product Description

Standards Certificate: ISO9001-2000
Power Supply: 220V/110V/50HZ/60HZ/1-PHASE
Colour Painted : White
Specifications: 1.Size of stamping plate: 150 x 160 mm;
2.Wattage: 1000W;
3.Stamping height adjustable range =180 mm;
4.Max. stamping diameter: For whole circle: 50mm For partial circle: 160mm;
5.Stamping temperature adjustable range: 0 - 300oC;
6.Stamping foil pulling length: =400 mm;
7.Stroke of stamping plate: 53 mm;
8.Max. stamping pressure: 600 kgf (7bar);
9.Max. stamping speed: 900 pcs/hr;
10.Air consumption: 100 litre/min;
11.Dimensions: 700 x 800 x 1000 mm;
13.Weight: 80 Kg;
Advantages: 1. Microprocessor control ;
2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Five-digit counter available;
4. Automatic back-and-front worktable ensures safe and quick operation;
5. Worktable capable of slight adjustment of back-and-front, left-and-right and rotation;
6. Automatic foil feeding and rolling with adjustable function;
7. High precision sensor available for foils feeding, ensures good registration;
8. Safe protection device installed;
9. The height of the stamping head has a great adjusting range, for large size workpiece.
10.Shuttle stable shift driving by pneumatic , ensure the stamping quality of cylindrical workpiece;
11.Applicable of stamping cylindrical workpiece on shuttle workpiece, and stamping flat workpiece while uninstall the shuttle;
Machine Fittings: 1. Name card silicon plate 1 pc
2. High temperature paper1 inch;
3. Stamping foil 1 roller;
4. Tool box 1 case;
5. English struction 1 booklet.
Package List: 1. Package list:750×600×850MM
2. Gross weight: 180KG
Customer : 1.Swery electronics LTD (Isreal )
2. L.T.D Mimino ( Georgia)
3. Irrico (Kenya)
4. Kobimar E-ticaret ltd sti (Turkey)
Product Description
Very fit lids, caps, eyebrow pencil, lopstick, ball pen with small diameter objects for cylinder stamping; when uninstall cylinder worktable, stamping small area flat objects.

TEL: 86-020
FOB Price:USD1808-1809Guangzhou
Other Price Terms:CNF,CIF
