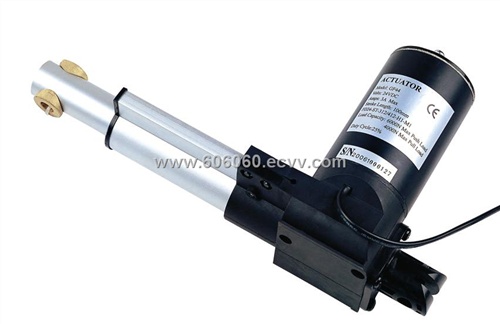

MODEL: GF44

MODEL: GF44

MODEL: GF44

  Prev Product Contact Now Next Product

Detailed Product Description

Features:
   ● Tube: Aluminum
   ● Limit Switches: Built-in (Factory Preset)
   ● Double-protection Device
   ● ACME Screw
   ● Mounting:
      (a) Inner tube cannot be turned freely.
      (b) Rear clevis can be turned 90°only.
   ● Stroke Length:
      (a) Min.: 50mm
      (b) Max.: Can be customized
   ● Lower Noise
Technical Data::
   ● Input Power:
       (a) 12～18V DC
       (b) 24～30V DC
   ● Speed (No Load):
        (a) One-start Screw: 3~5mm/s
        (b) One-start Screw: 8~12mm/s
   ● Load Capacity:
       1. One-start Screw:
          (a) Push: 600 kgs (1300 lbs) Max.
          (b) Pull: 400 kgs (880 lbs) Max.
        2. Two-start Screw:
          (a) Push: 300 kgs (660 lbs) Max.
          (b) Pull: 200 kgs (440 lbs) Max.
   ●  Reduction Ratio: 32:1
   ●  Duty Cycle: 10% (1 ON 9 OFF)
   ●  IP: 52
Post Date:5/22/2008
Expiry Date:5/17/2009
