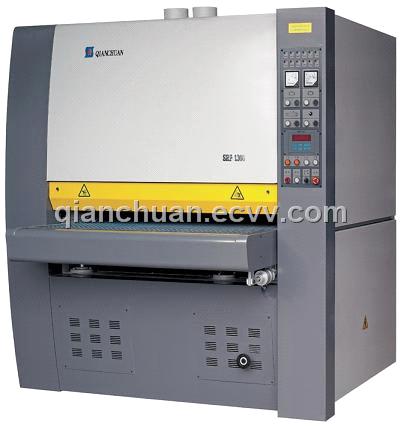

Wide Belt Sander

Detailed Product Description

Model No.		SRP1300-1	SRP1300-2
Working Width		40～1300mm	40～1300mm
Working Thickness		2.5～100mm	2.5～100mm
Working Length		≥640mm	≥530mm
1^st Sanding Belt Speed		19m/s	19m/s
2^nd Sanding Belt Speed		18m/s	12m/s
Feed Speed		6～30m/min	6～30m/min
Size of Sanding Belt(W×P)		1330×2200mm	1330×2200mm
Motors Power	Total motor power	63.74 kW	49.74 kW
	1st head motor	37 kW 4-pole	30 kW 4-pole
	2nd head motor	22 kW 4-pole	15 kW 4-pole
	Brush motor	0.37 kW 4-pole	0.37 kW 4-pole
	Feed motor	4 kW 4-pole	4 kW 4-pole
	Lifting motor	0.37 kW 4-pole	0.37 kW 4-pole
Working Air Pressure		0.55MPa	0.55MPa
Consumption of compressed air		0.1 m³/min	0.1 m³/min
Volume of Sucked Air		9500m³/h	9000m³/h
Speed of Sucked Air		25～30m/s	25～30m/s
Overall Dimension(L×W×H)		2360×2030×2220mm	2360×2030×2220mm
Net Weight		3700kg	3500kg
