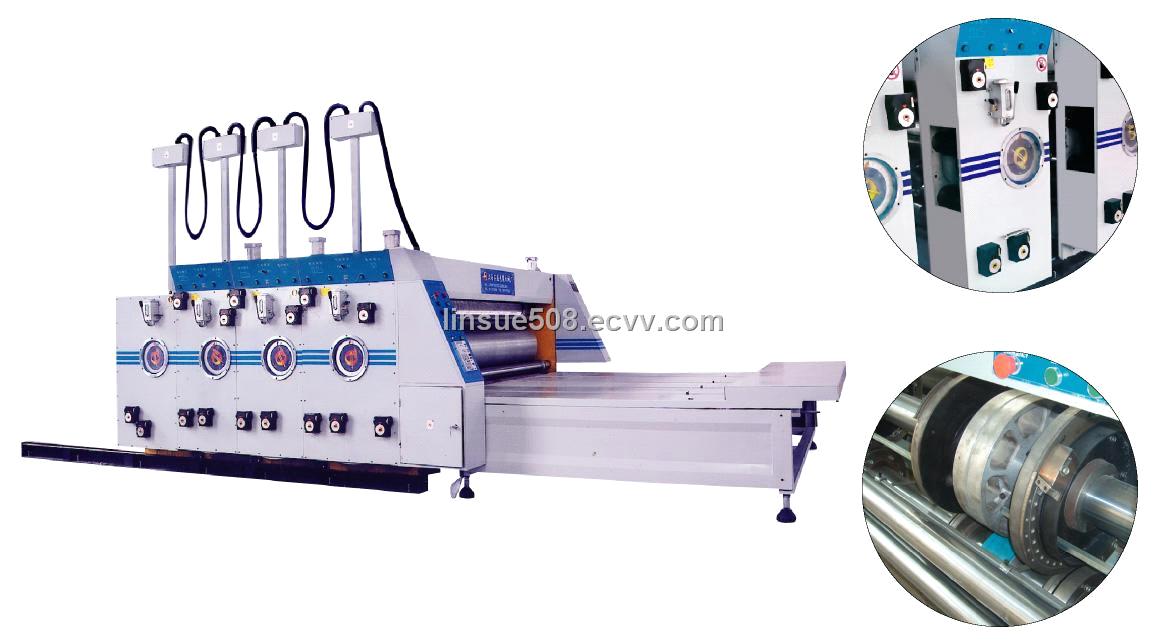

Carton/Shoe Packing Machine

Detailed Product Description

Features:

Planetary transmission and electrical positioning. 360-degreeadjustment in both dynamic and static condition
The embossing rollers get apart from printing template once machine stops.
The upper ink roller is equipped with load-free system that prevents ink from getting dried when machine is running.
Colors of 1to 4 can be combined easily
The pneumatic provides ink circulatory system from attracting style
Top-quality paper separating and grooving blades are used
Printing plate device printing a roller pretending to have a fleetness to hang
Step pedal is sued to control the side of printing plate when in mounting and dismounting

Transmission gears are joined together with no bonds, which ensures long-term printing precision.
Dip-in lubrication guarantees long life.
Electrical shit technology and pneumatic interlock is used on printing section and grooving section.
Imported electrical appliances and bearings are used.
Main technological parameters

型号（单位：mm）Model(Unit; mm)	1200*2400	1400*2600	1600*2800	1800*3000	2400*3200
最大进纸尺寸（G*A）Maximum feeding size	1200*2250	1400*2400	1600*2650	1800*2850	2400*3150
最小进纸尺寸（G*A）Minimum feeding size	300*300	350*350	450*450	500*500	650*650
最大印幅尺寸（G*A）Maximum printing breadth	1150*2000	1350*2200	1550*2400	1750*2600	2350*2800
最大开槽尺寸（I）Maximum grooving size	7*300	7*350	7*400	7*450	7*600
最小开槽间距（F）Minimum grooving clearance	100	110	120	120	120
开槽刀厚度（J）Grooving blade thickness	7	7	7	7	7
标准印刷版厚度Standard printing plate thickness	7	7	7	7	7
最高机械速度 (张/分)Maximum mechanical speed (sheets/minute)	70	60	60	50	30
二色外形尺寸长宽高The Dichromatic external form dimension LWH	550033002500	580035002600	600037002700	650039002900	850042003500
