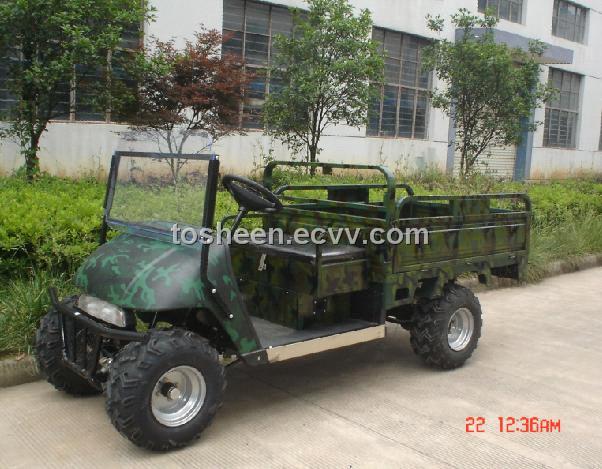

Electric Golf cart(DS-GF09)

Model: DS-GF09

Specification:
Overall dimensions(mm): 3100x1160X1250
Motor: 60VDC, high efficiency series wound 1.5KW
Electric system: 5x12VDC batteries, solid state continuously variable speed controller, inductive throttle sensor(ITS)
Brakes: Dual rear wheel mechanical drum
Speed(km/h): 35
Min. Turning circles diameter(m): 10
Wheel base(mm): 2050
Min. Ground clearance(m): 170
Braking distance(m): 4
Climbing ability(%): 30
Empty weight without batteries(kg): 293
Load weight includes passengers, cargo, accessories and operation(kg): 450
Seating capacity(persons): 2
Range(Km): 60                                                                             packing size:3000*1150*850mm
container: 8pcs/20‘ft,16pcs/40‘ft,24pcs/40HQ
