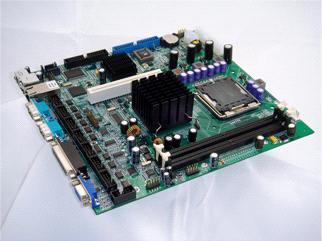

POS-1811LNA

Detailed Product Description

Specifications

Bus Type: POS single board architecture
Processor: Support LGA775 architecture full series processors
System Chipset: Intel 945G + ICH7; (945GZ compatible)
System Memory: Two DIMM slots, expandable up to 2G dual channels DDRⅡ533/400MHz memory
BIOS: AMI BIOS, support ACPI power management
Onboard Video: Integrated Intel GMA950 graphics acceleration core
Onboard LAN: One 10/100Mbps Ethernet controller, RJ-45 interface
Onboard Audio: AC97 2.3, support MIC-in/Line-in/Speaker-out
Hard Disk: One 40-pin IDE port and one 44-pin IDE, two SATA ports
I/O Interface: 1x FDD, 8x USB2.0, 2x SPP/EPP/ECP parallel ports, 10x serial ports (COM2 can select RS-232/485), 1x PS/2 keyboard/mouse
Digital I/O: 4-channel input, 4-channel output
Watchdog Timer: 256 level, programmable 1-255 seconds/minutes, timeout interrupt or system reset
Hardware Monitor: Monitor system status, voltage, temperature and fan speed
Expansion Bus: 1x PCI slot (support up to 3 PCI devices)
Power Supply: ATX power supply
Support Intel VT (Virtualization Technology) (optional)
Operating Temperature: 0°C ~ 60°C
Dimensions: 230mmx220mm
Operating Humidity: 5%~90%, non-condensing
