intelligent integration gas turbine flowmeter
model
Local display
note
LWQ-
Norminal
diameter
25A
25A/B/C
25mm
40A/B
40mm
50A/B
50mm
80
80mm
100
100mm
150
150mm
200
200mm
250
250mm
300
300mm
type
basic Accuracy:±1%R,±0.5%R
Repeatability;0.05%~0.2%
N
no
Impulse output
A
420mA 2-wire current output, remote transmission type
B
Yes
Battery power supply
C
yes
24VDC power supply,4~20mAoutput
D
Integrate pressure and temperature,compesation type

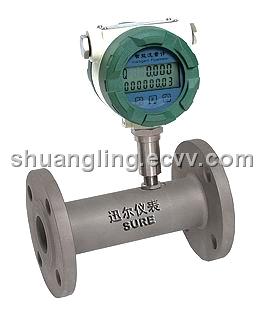

LQW-B/C type intelligent integration gas turbine flowmeter
Material:stainless steel
Accuracy: ±1.5%R±1.0%R
Repeatability:0.05%~0.2%
Explosion class:ExdIIBT6
Output signal:2-wire system 4~20mA(LWQ-C type)
Local display: yes
Note:LWQ-B type power supply adopts 3.2V10AH Li battery(can work for more than 3 years continuesely);non signal output.
LWQ-C type:power supply adopts 24VDC outer resouce,output 4~20mA standard 2-wire system electric current signal. It also can add with RS485 or HART communication according to different needs.
Power-Off Protection: The instrument coefficient and the accumulative flow value can be saved for ten years without power
