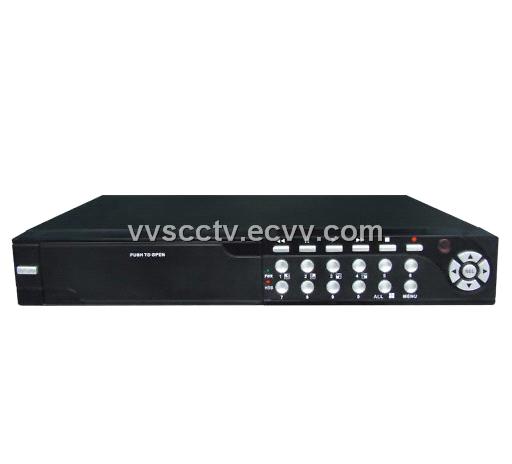

MPEG Stand Alone DVR(VVS-DVR6004)

Detailed Product Description

Model	VVS-DVR6004
Compression	MPEG4
Video I/O	BNC 4-channel inputs / 2-channel outputs
Audio I/O	RCA 2-channel inputs / 2-channel outputs
Display Resolution	NTSC: 720x480 PAL: 720x576
Display Frame Rate	NTSC: 120fps PAL: 100fps
Record Resolution	NTSC: 720x240 PAL: 720x288
Record Frame Rate	NTSC: 60fps PAL: 50fps
HDD Interface	IDE or SATA
Record Modes	Continuous, Motion Detection, Sensor Triggered, Time Schedule
Record Picture Quality	Low, Normal, High, Higher
Sensor & Alarm	4-channel inputs / 1-channel output
PTZ Control	RS-485
Network Interface	RJ45, TCP/IP
USB Interface	USB2.0(Optional)
VGA Output	Optional
Remote Control	IR remote control
Power Supply	DC 12V / 3A (adapter included)
Dimensions (DxWxH)	345x226x52mm
