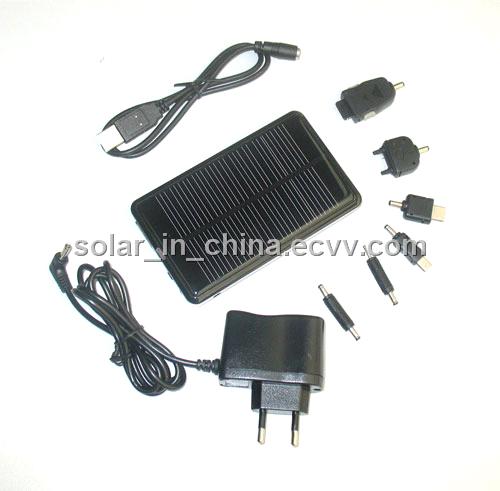

Sunlight magic box ST-8001 application :
Compatible for mobile phone/MP3/MP4/PDA/PSP and other entertainment device.
Special Character :
1) ST-8001 has adopted the best-quality mono- crystalline silicon plate with a high switching efficiency from light to electricity, which the switching efficiency can achieve to 17%. Comparing with the similar products that adopts general silicon plate in the market, its switching efficiency from light to electricity is improved in a large degree.
2) The advancing control circuit is researched and developed by IC and CPU imported from America as well as solar energy. It makes the secondary switching efficiency (which lays the electricity in the lithium battery) achieves upon 95%. Comparing with the similar products universally that the secondary switching rate are no more than 60% in the market, ?°Sunlight magic box ?± can be charged more quickly.
3) "Sunlight magic box" has adopted double- pressure protection technique, over-current protection technique, and temperature protection technique. The operation of the above techniques ensures that the ?°Sunlight magic box?± will produce no damage to your digital products and cell phones.
4) The battery used for storing electric power is treated by special technology, so it can undertake the temperature test as high as 80. It is absolutely safe to charge in the car, even the temperature over 60.
5) Passed CE/FCC/ROHS certificate.
6) OEM for China mobile, China Unicom,etc.
ST-8001 specs :
1.solar panel: Peak power supplied by photocell: 0.77W
2.Operating voltage: 5.5V (max)
3.Charging current: 140mA (max)
4.Battery capacity: 1800mAh
5.Output voltage: 5.6V
6.Output current: 600mA (max)
7.Charging time:10-14hrs (Irradiance: 100mW/CM2) 2-3hrs(wall outlet 5v/500mA)
Parameter:
Dimensions:120*72*15.5mm
Case : Fire proof plastic (ABS)
Input interface: DC interface
Output interface: USB interface
Small LED display: charge or discharge
LED light: big LED
Control switch: LED/OFF/ON
