Powder Coating

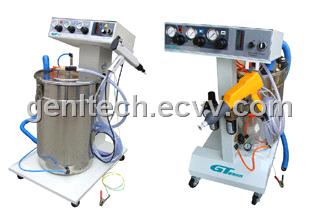

Electrostatic powder coating machines are used for metal surface finishing with different colors of powder paint. One complete powder coater includes electrostatic gun, controller, powder pump, feed hopper, air gauge and regulator, hoses, trolley, and accessories.



Technical Parameters
Input: 220-240V, 50Hz or 110-130V, 60Hz
Power: 40W
Output Voltage: max. 100kvDC
Output Current: max. 200uA
Polarity: Negative
Input Air Pressure: max.8bar
Output Air Pressure: max. 6bar
Air Consumption: max. 12nm3 / h
Powder Output: max. 600g / min
Safety Rating: IP54

Packing Size: 70×55×60cm

Net Weight: 30kg    Gross Weight: 38kg
