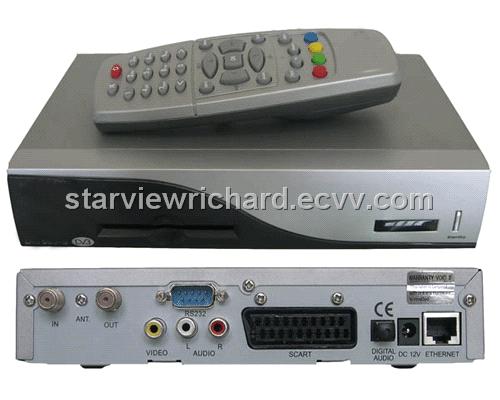

sell cost-effective DM500S

Output: FBAS,RGB,S-VHS over OSD selectable

Serielle Interface RS 232:
Typ RS232 bidirectional
Bit rate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming

Ethernet:
100 MBit compatible, bi-direktional interface
Function Update of Firmware and Preprogramming

LNB Power and polarisation:
LNB Current 500mA max. ; short-circuit-proof
LNB Voltage vertical < 14V without load, > 11,5V at 400mA
LNB Voltage horizontal < 20V without load, > 17,3V at 400mA
LNB shut-off at Standby-Mode

Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control

Power consumption:
< 10W / 12V

Input voltage:
DC12V,alternating acurrent +/- 15%

Extern power supply:
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 1A

Others:
Ambient Temperature +15°C...+35°C
Humidity < 80%
