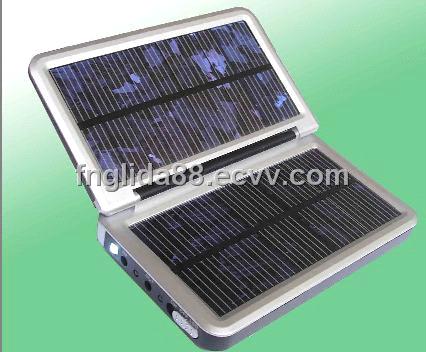

This charger is composed of three parts a solar-energy photocell, battery and voltage regulator.It can charge all kinds of mobiles under sunshine, it also can charge with discharging from the built-in battery in any places with weak sunshine or without sunshine.It is a good stand-by power source for your mobile when you are in travel,on board of ships or airplanes, or in fieldwork.
Specifications
Wattage1.45WVoltage4.8V (max)
Charging current300mA (max)
Power capacity1600mAh
Peak Output400mAmps5.2volts
Dimensions
Weight
Output the socket use
Is shown as diagram
(1) 1-LED,2 refresh the socket directly for the light battery opponent machine.( Is also a direct current power supply to place to the inside the storage battery refresh the socket) at there is the sun light or stronger spread to cast light the irradiation,canning link directly the cellular phone should put in a word to refresh,also can connect the switch of 6,link the storage battery refresh the exportation socket a machines refresh, the light battery will refresh to the storage battery at the same time at this time.Instructions at this time light 3and 5 all for red.The storage battery refreshes the saturated hour the designation the light 4 be changed into by red green.
(2) Place in sunlight weakerly or had no sunlight circumstance nextly, connect the switch of 6,storage battery work instruction light 5 brightlieseses,cellular phone link exportation socket 4, storage battery can at any time the opponent machine refreshes.The inside places the storage battery refreshes the saturation,instruction light 3 be changed into by red green.Need not hour should switch 6 pull out face the left side the close.
(3) When the inside places the storage battery electric voltage low, solar cell first as to it's refresh,at this time,the solar energy refreshes directly socket can't the opponent machine refresh directly.Want at this time the opponent machine refresh,pressing method operation.
(4) The inside places electric appliances module contain turn on electricity to protect the function.The turns on electricity to appear in the work process the electric circuit breaks to open, the evulsion deals with contact,closing to turn on electricity the exportation,wasing shone on by light to refresh,the electric circuit will connect the automatically.
Description of external output
1 LED
2 Socket for photocell to be directly charged
3 Indicator showing saturation of battery being charged
4 Output socket of battery being charged
5 Operation indicator of battery
6 Switch of battery
Warning
(1) Do not use at fire source neighborhood
(2) The inside battery makes to travel only after placing the ample electricity in storage battery,go on field trip or field works have no the hour of sunlight meets an emergency to refresh it use,can't replace the general charger usage;
(3) Do not want to do not moisten the charger devotion water inside, and also the inside places the storage battery with the electric appliances a piece;
(4) Do not do use the plus or minus pole in exportation in short-circuit battery in conductor in metals;
(5) Do not dismantle to unload or dissect the internal parts in charger;
(6) Invite detailed reading the manual before using the charger.The out of character operation may cause the inside places the storage battery to deformation or battery capacity reduces
(7) This charger inside places the storage battery have refreshed to the saturated capacity when leave factory As time went by, the battery capacity will be reduced.In the 25 environment for 30 days,the residual capacity≥900mAh.At other times,place the charger to the place in had the sun light or stronger spread light irradiation,the storage battery would be refreshed,it is beneficial to the mobile phone to meet an emergency to refresh at any time
(8) This charger has the direct current charger,if need the inside the storage battery meet an emergency to refresh,need to connect the direct current charger gone together with to the 110V240V AC power,insert the output direct current power supply into the solar cell opponent machine to refresh the electric outlet directly,the inside places at this time the storage battery will get the fast charge
(9) When the built-in battery discharges,the protective circuit cuts off the discharging switch,so the handset can not recharge itself.In this case, the built-in battery has to be recharged to make itself normally operate.
FAQ
1 Sometimes LED1 may twinkle in red when you charge up cell
Phone with the photocell,that issues form the,Voltage of internal storage charger on the low side,You can solve it buy
Changing to charge up cell phone with the internal storage
Battery,please refer to the second method of applications
2 the solar charger TS-SC-03 makes slight noise is normal phenomenon when you use the internal battery to charge up cellphone
3 If the LED2 twinkle in green when you use the internal battery
To charge up cell phone,that means the operation will be accomplished soon
4 If the LED2 doesnt work although you have set the switch on
the CH end,it may be because the protection circuit has cut the circuit in view of the lower voltage of internal battery
5 If the light doesnt work when you set the switch on the LED end,it may probably because of the lower voltage of internal battery charge up the lower voltage of internal battery,it will soon get back to normal.
