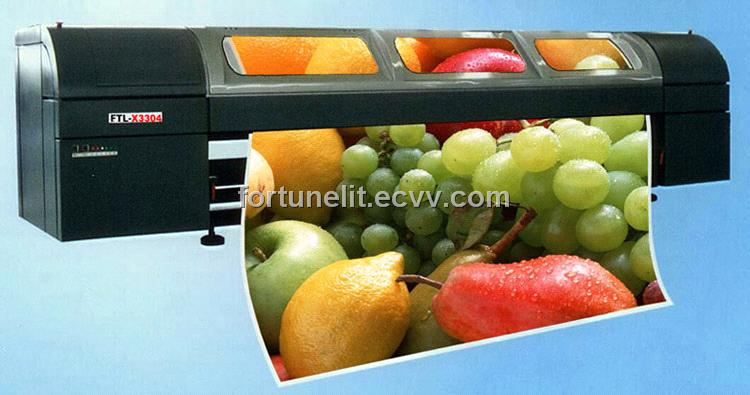

solvent printer

Detailed Product Description

Model No. Item	FTL-X3304	FTL-X3306+
Technology	Drop-on-demand Piezo electric	Drop-on-demand Piezo electric
print head	4pieces（Xaar500/360）	6pieces（Xaar500/360）
printing width	3.2m wide	3.2m wide
Resolution	Max 720dpi	Max 720dpi
Speed	2pass 72 ㎡/h	2pass 76 ㎡/h
	3pass 56 ㎡/h	3pass 60 ㎡/h
	4pass 46 ㎡/h	4pass 50 ㎡/h
	6pass 32 ㎡/h	6pass 36 ㎡/h
	8pass 22 ㎡/h	8pass 26 ㎡/h
Locating Mode	Raster/Servo	Raster/Servo
Color	CMYK	CMYK LC LM
Media width	3.3m	3.3m
Media Handling	Roll to roll	Roll to roll
Media Types	Flex banner ,PVC, mesh fabrics, vinyl sheet, carpet Paper	Flex banner ,PVC, mesh fabrics, vinyl sheet, carpet Paper
Ink Characteristics	Solvent-base pigments, two-year outdoor life	Solvent-base pigments, two-year outdoor life
File format	TIFF,RGB and others	TIFF,RGB and others
Working Process	Maintop software for printing(window 98,XP)	Maintop software for printing(window 98,XP)
Dimension(LWH)	5.1mx1.25mx1.3m	5.1mx1.25mx1.3m
Power supply	50Hz/60Hz, 220V(±10%)>15A	50Hz/60Hz, 220V(±10%)>15A
Operation Enviroment	Temperature 18C-26C Relative Humidity 40-70%	Temperature 18C-26C Relative Humidity 40-70%
Weight	1500kg	1500kg
