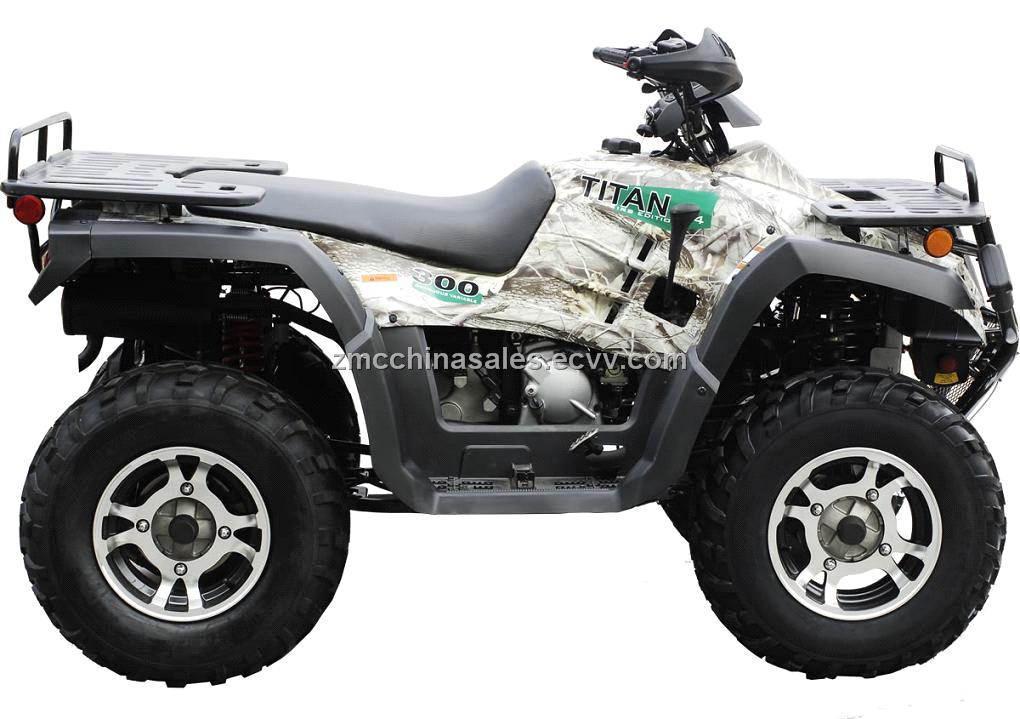

08' ZMC Titan 300CC Limited ATV, Quad, All Terrain Vehicle

Engine
Engine Type 4-Stroke
Displacement 297cc
Cooling Liquid Cooled
Carburetor CVK052
Starting Electric

Drive train 4WD / Independent  or 4WD / Solid
Final Drive Shaft / Shaft
Transmission R-N-L-H CVT Fully Auto
Drive System 4WD
Engine Braking N/A

Suspension
Front Suspension Double A Arm, Adjustable Shock
Rear Suspension Independent, Adjustable Shocks / Swing Arm, Adjustable Shock

Brakes
Front Brakes Dual Hydraulic Disc, Ez Lube Hubs
Rear Brakes Dual Hydraulic Disc,

Wheels
Front Tires 25X8x12
Rear Tires 25x10x12
Rims Aluminum or Steel

Dimensions
Wheelbase 1271mm
Ground Clearance 183mm
Seat Height 895mm
Dry Weight 266kgs
Length x Width x Height 2016x1180x1237mm

Capacities
Fuel Capacity 14.5 Litres
Front-Rack Capacity 40kgs / 88lbs
Rear Rack Capacity 50kgs / 110lbs
Max Hitch Tongue Weight 85kgs / 200lbs
Max Towing Weight 686kgs / 1500lbs
Max Rider Weight 156kgs


Instrumentation
H/L Beam Switch, Headlights / Running Lights, Tail Light, Kill Switch, Starter Switch, Speedometer, Odometer, Distance Tracker, Fuel Level Indicator, Temperature Meter, Gear Position Indicator, Electronic 2/4WD Button, Hazard Lights, Left & Right Signal Lights, 12V Power Adapter (cell phones, flash lights & other external products can use this adapter)

Colors
Green, Red, Black, Tan Camouflage
