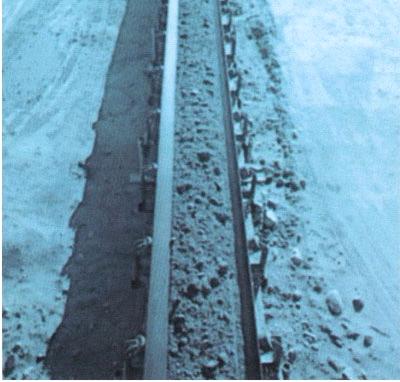

Steel Mesh Conveyor Belt,steel conveyor belts

Detailed Product Description

Feature:1) The smaller elongation for steel mesh belt reduces the length of take-up.2) Excellent adhesion between steel mesh and cover rubber to resist flex fatigue and impact.3) Single carcass reinforcement has much better flexibility.4) Steel mesh belt offers superior resistance to the repeated impacts.

Steel Mesh Grade(IW-Type)
-	Grade	IW350	IW500	IW630	IW800	IW1000	IW1250	IW1600
Tensile Strength(Warp)	kg/cm	350	500	630	800	1000	1250	1600
Tension Rating	kg/cm	35	50	63	80	100	125	160
Tensile Strength(Weft)	kg/cm	90	90	90	125	125	175	175
Carcass Thickness	mm	3.2	3.2	3.2	4.5	4.5	6.0	6.0
Weight	kg/㎡	1.85	2.45	2.95	4.15	5.00	6.35	7.90
Pulley Diameter	mm	350	350	350	400	500	600	650
