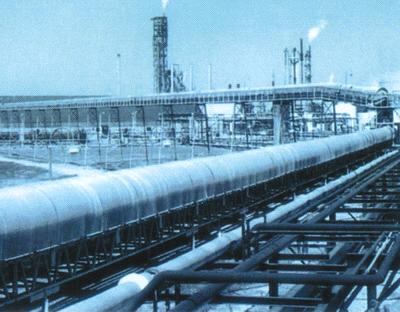

Pipe Conveyor Belt

Detailed Product Description

Special features:

1) Closed transportation in order to prevent materials from overflowing ,drop-down, scattering and mixing with foreign materials from outside.

2) This pipe conveyor belt is economical for curve(45°-90°) and incline(up to 30°) transportation due

Special Feature os Each Grade
Pipe Diameter (mm)	Cross Section Area (75%)	Belt Speed (M/min)	Capacity (㎡/hr)	Material Size (mm)	Comparison with standard C/Belt(mm)
150	0.013	120	95	30~50	300~500
200	0.023	130	180	50~70	500~700
250	0.041	140	344	70~90	600~750
300	0.049	145	441	90~100	750~900
350	0.066	175	693	100~120	900~1,050
400	0.108	200	1,296	120~150	1,050~1,200
500	0.155	225	2,093	150~200	1,200~1,500
600	0.216	250	3,240	200~250	1,500~1,800
700	0.290	275	4,620	250~300	1,800~2,000
850	0.404	300	7,272	300~400	2,000~2,200
