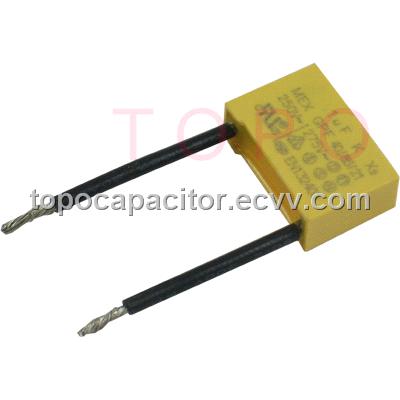

X2 Metallized Polypropylene Film Capacitor (Insulation wire leads, lead-free tinned)

Detailed Product Description

Construction
Dielectric: polypropylene film,PP
Radial & Boxed
Wound capacitor technology
Plastic case

Epoxy resin coating

Features
Anti-Jamming
Very good self-healing properties

Smallest possible dimensions

High contact reliability

Typical applications
Compact fluorescent lamps (CFL)
SMPS

Terminals
CP Line Leads, leads-free Tinned
Insulation wire leads, lead-free tinned

Climatic

Max. operating temperature: 85 Centigrade

Climatic category: 40/085/21

Delivery mode

Bulk

Technical data and specifications

Operating temperature range

Max. operating temperature T_op,max 85Centigrade

Upper category temperature T_max 85 Centigrade

Lower category temperature T_min 40 Centigrade

Rated capacitance C_R

0.001 μF~4.7 μF

Tolerance

J(+-5%); K(+-10%)

Rated voltage V_R

275VAC 300VAC 450VAC

_{DC test voltage}

4.3*V_R

Rated frequency F_R

50/60Hz

Dissipation factor tan d

J <=0.002 1KHZ K <=0.004 1KHZ

Insulation resistance

C_R<=0.33μF >=15000M?

C_{R ^>}0.33μF >=5000s
