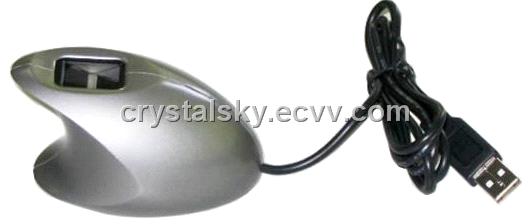

Fingerprint Sensor CS300

Product Features:

Crescent exterior design, small and exquisite.
1.Adopts advanced optical technology, high image definition, extensive application (Suitable for people between the age 6 and 80).
2.PVD coated glass surface of optical fingerprint sensor, resulting in durable life.
3.USB com port.
4.Able to provide SDK to integrate the program, support VC++, VB, Delphi and C++ Builder.

Applications:

Identity Reader is versatile in applications in family, organization with network members,
accountant office, welfare department, police office, bank, stock exchange, etc

Main Functions:

1.Log-on computer
2. Screen saver login identification
3. Data encryption
4.File & folder encryption
5. Can be developed for network log in identification & website member identification
6.Name and password are replaced by fingerprint

Key Specifications:

1.Operating voltage:5V(DC)
2. Dynamic current:<100mA
3.Communication protocol: USB
4. Sensor resolution: 500dpi
5.FRR (False Rejection Rate): 1%
6. FAR (False Acceptance Rate): 0.0001%
7. Image Capture Time: ≤2S
8. Verification time: <1S
9. Capture Angle: 360°
10. OS：Windows 2000, XP etc.
11.Size:90*60/54MM
12.Weight: about 105G
