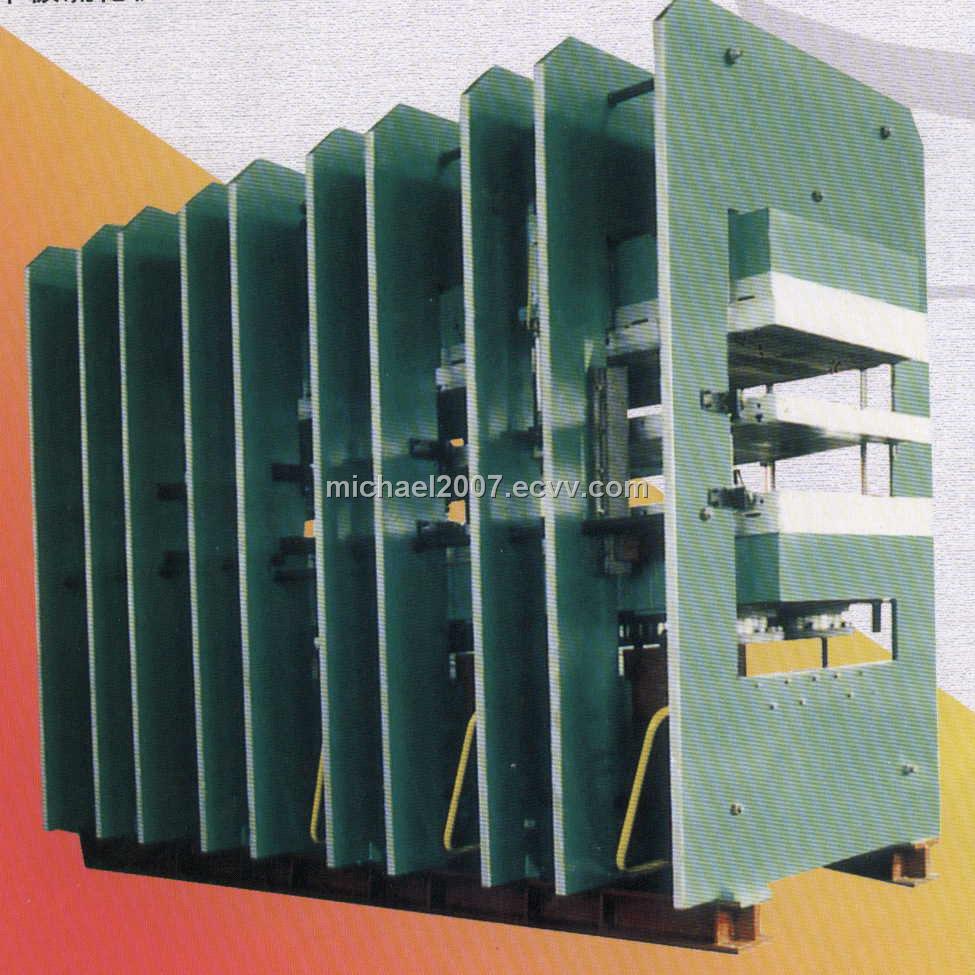

Hydraulic Press for Conveyor Belt

Type:
XLB-5700x1(2)
Nominal mold clamping force(MN)
28.00
Specification of hot plates(mm)
1400x5700x80
Space between hot plates( mm)
200-400
Unit area pressure of hot plate(kg/cm2)
35.0
plunger diameter (mm)
450
Max.stroke of Plunger (mm)
400
Max. working hydraulic pressure (Mpa)
17.6
Max. working temperature(C)
170
Max. steam pressure (Mpa)
1.0
Quantity of hydraulic cylinder (set/pc)
10
Electric machine power (Kw)
66
Overall dimension LWH)(mm)
5700x2350x4200

Other Price Terms:

C&F
