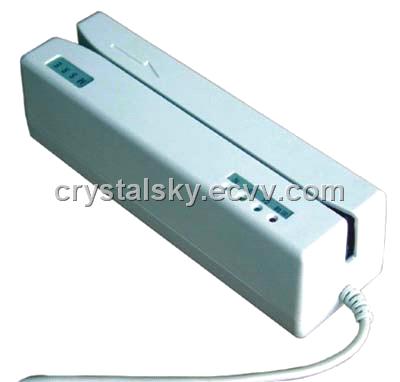

Magnetic Card Reader CS600

Basic Explanation (GENERAL INFORMATIONS):

The CS600 series bar magnet (card) the reader-writer may join any has the RS232 serial port computer or the terminal, uses in bar magnet information which the read-write magcard or saves loses money in business. Outside this series bar magnet reader-writer the beautiful appearance, the operation simple comfortable, read-write homogeneous time brushes the card to complete, has reads, writes the duplication check function, the performance stable reliable, and the compatibility good (can automatic diagnosis many kinds of bar magnet read-write order collection), has a better versatility. But widely uses in the finance, the posts and telecommunications, the transportation, the customs and so on each domain, specially banking system credit card release, magcard and bank counter bankbook bar magnet read-write.

Technical Specification: (SPECIFICATIONS):

1.Read-write standard: ISO7810,7811-1~5, IBM
2.Power source: DC+5V Reads the electric current: ≤85mA Writes the electric current: ≤150mA
3.Laikha speed: 10cm-120cm/s
4.Recording density: First track: 210BPI Second track: 75BPI/210BPI may elect
5.Third track: 210BPI
6.Recording character number: First track: 76 characters Second track: 37/104 character 7.Third track: 104 characters
8.Magnetic head life: Least 800,000 times
9.Communication: RS-232C serial asynchronous communication

Environment Request:

1.Work: 0-50℃ 20-90%RH
2.Memory: - 20-70℃ 20-80%RH
3.Size: W180*L245*H135mm
