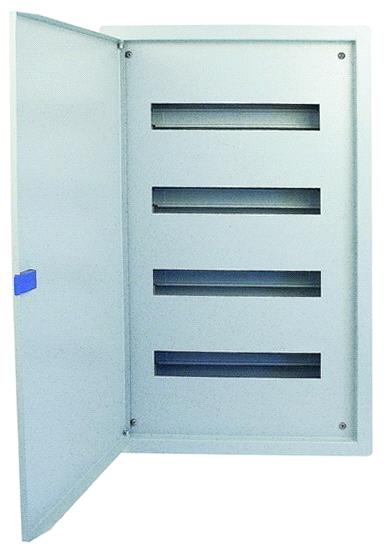

Modular Enclosures( GPR-4 distribution box)

Modular enclosures are standard enclosures suitable for mounting various types of din-rail switchgear components used for safe and reliable distribution and control.

Module

Used for:
1 standardized part of independent unit used in construction.
2 standard unit of measurement.

Features:
1. Made out of high quality electro-galvanized steel sheet of up to1. 5mm thickness.
    matt-finish polyester powder coated paint
2 knockouts provided on all sides of the enclosure.
3 adjustable rail mounting assembly made of electro galvanized steel (painting also can be done).
4 designed for indoor (ip41/nema 1) applications
5 complies with iec and nema standards
6 wider enclosure offers ease or wiring and move heat dissipation.
7 the hinges can be fixed in the opposite side to change the door opening direction.
8  flush and surface mounted designs
9 knockouts for cable entry are provided on top, bottom of the enclosure.

Options:
1 available from 1 row up to 6 rows.
2 each row capable of accepting 16 din rail modules.
3 generous neutral & earth terminals.
4 door with cam type key-lock available.

Specification:
The modular enclosure is suitable for-
Service voltage: 415/240/120 vac
Rated insulation voltage: 600 vac
Frequency: 50/60 hz
Ambient temperature: 50 ^oC
Indoor IP 41 applications
