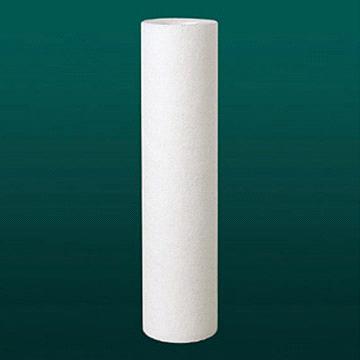

The Flow-Pure depth filter cartridge was manufactured by three different pore diameter of spray nozzle which is according to the patent of UFO-TECH"the multi-layer product".The three-layer structure PP depth cartridge is functioned with fine fibers in inner layer and coarse fibers in outer layer which constitutes three different pore diameter in order to filtrate particles in different layer.This design has high contaminant holding capacity.Therefore, the filter has a longer service life and pressure drop.
Features & benefits :
Three-layer structure cartridge,high contaminant holding capacity,long filter service life.Micro-denier melt-blown filtration fiber,high removal ratings.100% PP for compatibility with a wide range of process fluid ..Certificated by ISO9001,SGS,ROHS,NSF.
Operating conditions:
Maximum operating pressure drop: 60C :1.8kg/cm2
20C :3.2kg/cm2
Recommended replaceable pressure drop :1.5kg/cm2
Maximum operating temperature :60C
Applications of product :
Electroplating, etching and image development processes in PCB industry.
Filtration of electroplating fluid in conventional electroplating industry.
Pre-filter of DI & RO water filtration system for industry.
Filtration of low viscosity fluid of chemical.
Filtration of water for manufacturing processes and recycled water.
Product specifications:
Micron rating :normal 0.5,1,3,5,10,25,50,75,100micron
materials of construction :100% melt-blown micro-denier PP fiber.
Length :9.87",10",20",30",40"(251mm,254mm,508mm,762mm,1016mm)
Inner Diameter :28mm
Outer Diameter :63mm
| FOB Price: | USD0.4-1Shenzhen |
| Other Price Terms: | FOB Shenzhen ,CIF Shenzhen |
