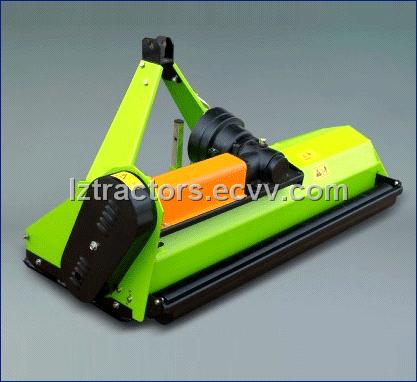

Flail Mower

Flail Mower

Flail Mower

  Prev Product Contact Now Next Product

Detailed Product Description

MODEL EF85 EF95 EF105 EF115
DIMENSIONS(LxWxH) mm 950x687x722 1050x687x722 1150x687x72 1250x687x722
STRUCTURE WEIGHT(kg) 100 115 130 145
CUTTING WIDTH(mm) 829 929 1029 1129
WORKING EFFICIENCY 2500~6500m2/h 2500~7500m2/h 3000~8000m2/h 3300~9000m2/h
PTO TURNNING SPEED 540r/min 540r/min 540r/min 540r/min
PTO SPLINE 6x8x800 6x8x800 6x8x800 6x8x800
POWER REQUIRED 14~18hp 16~20hp 20~30hp 20~30hp
MODEL EF125 EF135 EF145 EF155
DIMENSIONS(LxWxH) mm 1350x687x722 1450x687x722 1550x687x722 1650x687x722
STRUCTURE WEIGHT(kg) 160 175 190 300
CUTTING WIDTH(mm) 1229 1329 1429 1520
WORKING EFFICIENCY 3700~9800m2/h 4000~10600m2/h 4300~11400m2/h 4600~12240m2/h
PTO TURNNING SPEED 540r/min 540r/min 540r/min 540r/min
PTO SPLINE 6x8x800 6x8x800 6x8x800 6x8x800
POWER REQUIRED 25~35hp 25~35hp 25~35hp 28~38
