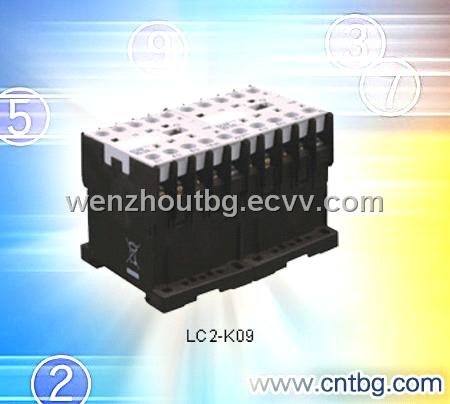

LC1-K MINI AC Contactor

Detailed Product Description

Application

-LC1-K series AC contactor in suitable for using in the circuit up to the rate and frequent
starting ,controlling the AC motor, The addition of auxiliary contact group to the contactor,
combined with the proper thermal relay, can act to protect the circuit bound to overload.

Specifications

*Type: LC1-K0610, LC1-K0601, LC1-K06004, LC1-K06008, LC1-K0910, LC1-K0901, LC1-K09004, LC1-K09008, LC1-K1210, LC1-K1201, LC1-K12004, LC1-K12008

*Rated working voltage (V): 660, 690

*Rated working current (A): 380V

1) AC-3: 6, 9, 12

2) AC-4: 2.6, 3.5, 5

*Rated heat current (A): 16, 20

*Max. Connecting current (A):

1) 380V-60, 90, 120

2) 660V-72, 108, 144

*Max. Breaking current (A)

1) 380V-48, 72, 96
