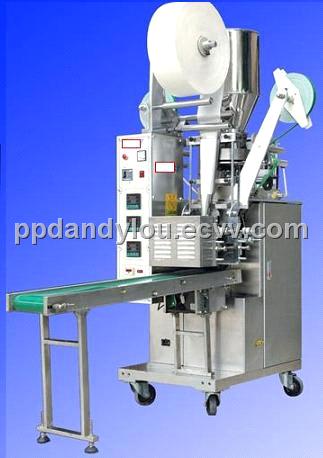

INSTANT TEA BAG FILLING & PACKING MACHINE

^{It is complete with fully auto function as follows:-
- Automatic filling measurement of refined tea leaves
- Automatic insertion and feeding of drawn thread
- Automatic customized label tag attachment
- Pre-program cutting
- With automatic unit counter}

^{Costs effective, single operator, user-friendly and high productivity}

^{Recommendation: For the filling and packing of all type of refined tea, coffee and others.}

^{Technical Data:-}

^{Measurement - Volume metric method
Measuring Scope - 2.5-10ml about 1.505gsm of refined tea leave
Bag Size - Min. 50 x 50mm; Max.65 x 80mm
Label Tag Size - 28mm (W) x 25-30mm (L)
Packing Speed - 30 – 60 bags per minute
Machine Weight - 450 Kg
Input Power Supply - AC220V 50 Hz
Total Power - 1.6Kw
Main Motor - AC 220V 370W Single Phase 14000rpm
Heater - AC 110V 250W 2 pcs / AC 110V 300W 2 pcs
Central System - About 40W}

^{For vidio presentation,please contact us!}
