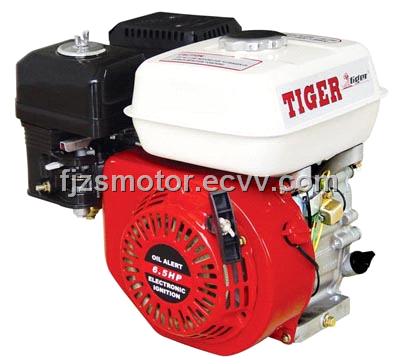

TE SEIRES GASOLINE ENGINE(TIGER)

TE SEIRES GASOLINE ENGINE All the engines possess the properties of steady-going, low noise, reliable and stable running We adopted advanced technology OHV to design it, the technology enable the whole gas generator’s level forward. Compare with VS it reduce the fuel consumption largely, enable the durability and push the life of gas generator longer. It has oil warning devices. The engine will be automatic closed when lube consume to the danger level to protect the engine. There are many kinds of shaft to choose according to different use.. And there are tow ways of starting and they are electrical and recoil.

Engine Type Air-cooled 4 stroke OHV single cylinder
Bore×Stroke 68mm×45mm
Ignition system Non-contact transistorized ignition (TCL)
Start mode Recoil and hand-operated
Air cleaner Semi-dry, oil bath, dual, double silent and cyclone type
Displacement (ML) 163ml
Compression ratio 8:5:1
Max Power output   5.5HP/3600rpm
Max Torque   10.8N.m/2500rpm
Fuel tank capacity (L) 3.6L
Engine Oil capacity (L) 0.6L
Fuel consumption       230g/HP-hour
Dimension (L×W×H) mm 312mm×380mm×335mm
N.W (Kg) 15kg

Post Date:	6/11/2008
Expiry Date:	6/6/2009
FOB Price:	USD68-158FUZHOU /NINGBO
