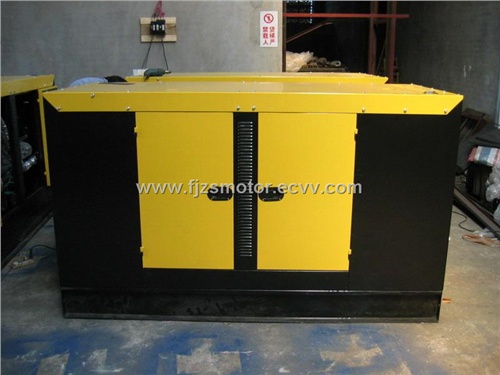

GF3 SERIES DIESEL GENERATOR SET(SILENT)

Silent generator sets are suitable for areas with strict requirments on noise and other special requirments as telecom, bank, large building, airport etc.。Silent generator sets are scientificly designed by using advanced technologies on acoustics and breath subject, adopt brand-name engine and generator and high quality of AVR, fine performances, high reliability, graceful in shape for outside cover, easy to dismantle, compact structure。Our products meet the standards ISO8528 and GB2820。
　　In technical datas, all datas are typical on engine and generator。It also is selected for adopting other engine and generator, may see the data for common generator set。

Technical Data:

Model		10GFS	12GFS	15GFS	20GFS	24GFS	30GFS	50GFS	75GFS	90GFS	120GFS	150GFS
Rated Power( KW )		10	12	15	20	24	30	50	75	90	120	150
Rated Volt.( V )		400	400	400	400	400	400	400	400	400	400	400
Rated Curr.( A )		18.1	21.6	27.1	36.2	43.3	54.1	90.2	135.3	162.4	216.5	270.6
Engine	Model	295AD	2100AD	395AD	495AD-13	495AZD-13	495AZD-13	4135D	6135D	6135AD	6135AZD	12V135D
	Rated Power( KW )	13.8	15.3	20.6	26.5(36)	35.3(48)	35.3(48)	58.8(80)	88.2(108)	110.3(150)	154.4(210)	176.5(240)
	Fuel Consumption g/kw*h	258.4	258.4	254.2	265.2(195)	233.79172)	238(175)	238(175)	238(175)	238(175)	238(175)	238(175)
	Start Type	Electric( DC12/24V )
	Generator	Rated Power KW	10	12	15	20	24	30	50	75	905	120	150
Excitation		Brush or Brushless
Net Weight kg		800	850	980	1480	1580	1950	2500	3000	3180	3900	4900

Model		200GFS	250GFS
Rated Power( KW )		200	250
Rated Volt.( V )		400	400
Rated Curr.( A )		361	451
Engine	Model	12V135AD	12V135AZD
	Rated Power( KW )	236.8(315)	236.8(315)
	Fuel Consumption g/kw*h	238(175)	238(175)
	Start Type	Electric( DC12/24V )
Generator	Rated Power KW	200	250
	Excitation
Net Weight kg		5200	5830

Post Date:	6/11/2008
Expiry Date:	6/6/2009
FOB Price:	USD3000-30000FUZHOU
