Shanghai Jiacheng Packaging Machine Manufacturing Co.,Ltd

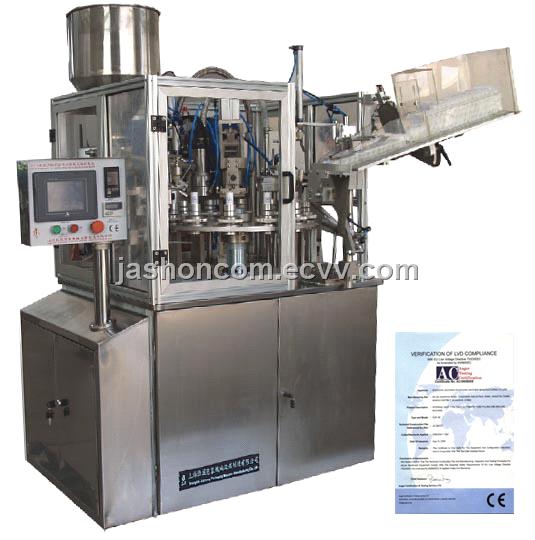

GDF-40 Automatic Sealing & Filling Machine
The machine is operated by switch button and touch screen, and controlled by PLC.
The plastic or aluminum-plastic tube with diameter min.16mm max.60mm, length min.60 max.258mm is available.
Technical Parameters:1) Filling Scope: min.5ml max.60ml, min.30ml max.120ml, min.40ml max.300ml, min.60ml max250ml2) Filling Precision: ±1.5%3) Production Ability: 5-40PCS/MIN (According to the materials)4) Air Supply: >0.5Mpa >0.14M 3/min5) Power Supply: 220V 50HZ6) Power: 3.5KW7) Counter: 0-999999PCS8) Dimensions: 1200×930×1600 MM9) Weight: 450 Kg
