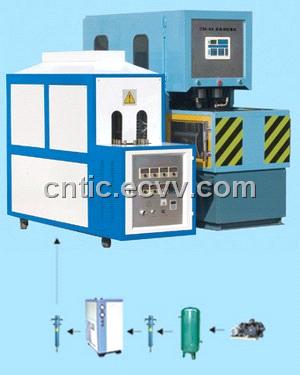

bottle blowing machine, semi-automatic

CM-9A Stretch blow-molding machine is an economical machine for blowing various PET bottles of max. Volume up to 5L. This set of machines uses rotary infrared oven for preheating with high production capacity. Features of CM-9A are automatic control, high output, working safety, simple structure, convenient in operation and less power needed. It is an ideal equipment to make mineral water bottle, shampoo bottle, washing bottle, edible oil bottle, wine bottle, pharmacy container, milk bottle and other daily usage bottles and containers from 50ml to 5L with different shape and neck diameter
Specifications:

Bottle volume: 0.1L to 5L

Max. Production capacity: 500 to 750 bph ( 0.1L to 2L) 150 to 180 bph (2L to 5L)

Mould-clamping pressure: 10kg

Max. Size of mould: 300mm

Max. Mould opening stroke: 280mm

Max. Mouth diameter of bottle preform: 120mm

Max. Length of bottle preform: 250mm

Max. Heating speed of preform: 1800pcs/h
