Detailed Product Description
Structure and Character

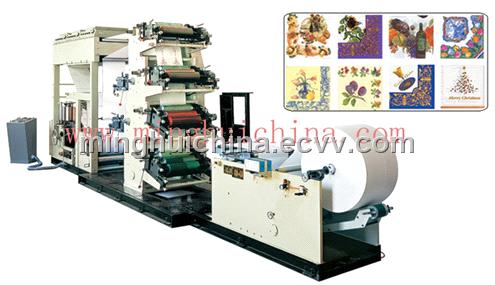

1. The machine is special for printing 6 colors napkin tissue.
2. Steel to rubber embossing roller, electric-heating stable temperture to make embossing pattern. Steel to steel embossing roller can be equipped with according to customers demand.
3. Adopt soft printing unit, the printing design can be changed easily.
4. Belt drive, web tension control device.
5. Electrical counting device.
6. Drying by infrared ray system.
7. Automatic ink circulator system.
8. The machine is able make two size products by changed a few spare parts.
9. PLC control system, touching screen can be equipped according to customers` demand.
10. It can be equiped with automatically load jumbo roll unit according to customers demand.
Technical Parameter
Power supply: 380V 50HZ
Installation capacity: 16KW
Designed production speed: 150m/min
Stable production speed: 80-100m/min
Unfold dimension: 250*250mm, 330*330mm,
Folding dimension: 125*125mm, 165*165mm
Jumbo roll dimension: ?1000* 250mm, ?1000* 330mm
Paper layers: 1-3layers
Base weight: 15-20g/㎡
Waster percent: ≤2%
Machine dimension: 8.0 * 1.1 * 3.3m (L×W×H)
Weight: 6.0T
