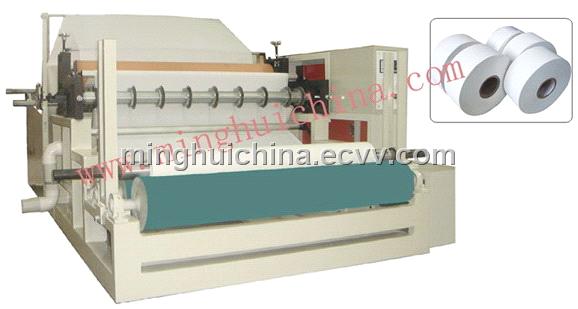

slitting and rewinding machine

Detailed Product Description

Structure and Character

1. The machine is used to slit and rewind kraft paper, corrugated board, sand-coated paper and all kind of packing material.

2. Belt drive, web tension control device.

3. It can equip with automatically load jumbo roll unit according to customers` demand.

4. It has the feature of rational structure, easy operation and simple maintenance.

Technical Parameter

Power supply: 380V 50HZ

Installation capacity: 6.0KW

Designed production speed: 100m/min

Stable production speed: 60-80m/min

Product dimension: adjustable

Minimum slitting width: 50mm

Jumbo roll dimension: ?1200 * 1200mm, ? 1200 * 1800mm (Dia.*Width)

Basis Weight: 150-400g/㎡

Waster percent: ≤2%
Machine dimension: 4.2 * 2.6 * 1.2m （L * W * H）

Weight: 1.5T
