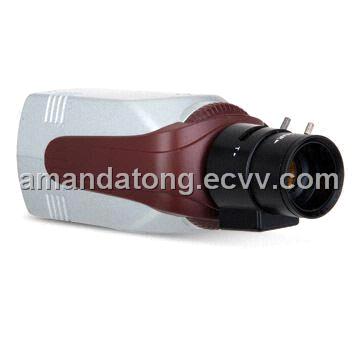

CCTV Super Wide Dynamic Camera WDR01 Series

Detailed Product Description

MODEL	WDR01-3D	WDR01-4D
Image Sensor	1/3＂DPS (Digital Pixel System)
Signal System	PAL/NTSC
Effective Pixels	PAL: 720(H) x 540(V); NTSC: 720(H) x 540(V)
Horizontal Resolution	480TV lines	520TV lines
Minimum Illumination	0.5/F1.2	0.8Lux/F1.2
S/N Ratio	More than 52dB
Dynamic Range	101dB Typical. 120dB Maximum
Control Method	OSD Screen Contro
White Balance	AWB/ATW/ATW LIMIT/ATW DESAT/MANUAL (selectable)
Auto White Balance Range	2000K to 11000K
Auto Gain Control	adjustable
Video Output	1.0-1.2Vp-p adjustable
Gamma Correction	adjustable 75 Ohm
Sync Mode	INT/L.L
Lens Mount	CS/C with ring
Auto Iris	DC
Power Supply	12VDC/24VAC
Power Consumption	4W
