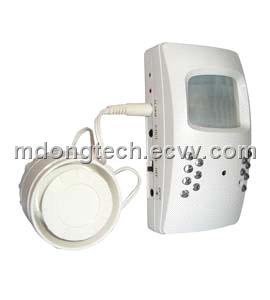

Mini Alarm DVR CCD Camera-MDS-6501

Detailed Product Description

Feature:

> Work with alarm system in wireless
> PIR detective & motion detective,working steady
> Connect with a mini siren,when someone intrude,it will
start recording/snap automatically
> AVI recording and JPG snap optional
> Overwriting when memory is full.
> Support 2G SD card
> Internal 1/3" SONY CCD camera makes pictures clearly
> Internal lithium battary
> Real time clock record the time for every video/picture
> Mode Exchange for PAL/NTSC
> Review the video and browse pictures via monitor or TV
> Night vision,using in dark condition

Specifications

Items	Data
Power supply	DC 5V
Electric current	500mA-800mA
AV out impedance	75Ω
AV Out volt	1Vp-p
TV Mode	PAL / NTSC
Internal camera	SONY 1/3 CCD (Optional)
Trigger for record	Motion detection
Trigger for alarm	Motion detection + PIR detection (optional)
PIR detection distance	≤8M
View angle	≤120 degree
Record Frame	PAL：10 f/s NTSC：10f/s
AVI Resolution	320 X 240
JPEG resolution	640 X 480
Horizontal resolution	420 TV Line
Memory	Flash memory and SD Card
SD card capacity	≤2G byte
OSD	English
Alarm chip	Fixed code :PT2262 / Study code: SC1527
Surge resistance	4．7MΩ（optional）
Data code	D1 low ,D2 high,D3 empty,D4 empty
Wireless frequency	315MHZ/433MHZ (optional)
Li-battery capacity	1800MAH
Battery recharge	>6 hours
Battery discharge	>3 hours
AC adapter	AC/110 – 240V ,50-60HZ,DC5V ,1.5A
RC distance	≤8M
IR distance	5M-8M
IR wavelength	850NM
2G SD card using time	Common conditions: AVI video recording for 3-5days ，snapshot for 15days
