| Specifications: |
| Camera Specification |
Frequency: ISM 2,400 - 2,483MHz |
| Imaging Sensor: 1/3 inch OMNIVISION Color CMOS |
| Horizontal Resolution: 380TV Line |
| CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC) |
| View Angles:Built-in 11IR LED, 62 degrees |
| Minimum Illumination: 0Lux / F2.0 & 0Lux (IR ON) |
| Gain Control: Automatic |
| Transmission Power: 10mW |
| Consumption Current: 80 mA |
| Modulation Mode: FM |
| Bandwidth: 18M |
| Operating Range: 30m/100m (Obstructed / Unobstructed) |
| Power: DC 9V |
| Operating Temperature: -10oC ~ +40oC |
| Operating Humidity: 85%RH |
| Dimension(WxLxH):45.5x45.5x106 mm |
| LED Working Life (Continuous): 6000 hours |
| Weight: 200g |
| |
| Receiver Specification |
Frequency: ISM 2,400 - 2,483MHz |
| Antenna: Omni-directional antenna |
| Channel: 1-4 (Flip-type switch) |
| Intermediate Frequency: 480MHz |
| Frequency Stabilization: +/- 100KHz |
| Demodulation Mode: FM |
| Receiving Sensitivity: ≦-85dBm |
| Video Output: 1Vp-p@75 ohm, S/N>38dB |
| Audio Output: 1Vp-p@600 ohm |
| Power:DC 9V |
| Operating Temperature: -10oC ~ +40oC |
| Operating Humidity: 85%RH |
| Dimension(WxLxH): 80x68x16 mm |
| Weight:200g |
| |
| Standard Package Content |

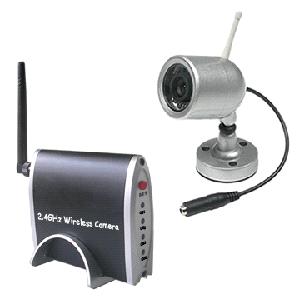

- 2.4GHz Wireless Outdoor Camera with IR and Microphon |
| - 2.4GHz Wireless Flip-type 4-channel AV Receiver |
| - Antenna for Receiver |
| - AV cable |
| - 8V Power Adaptor for Camera |
| - 9V Power Adaptor for Receiver |
| - Swivel Bracket for Camera |
|
| |
| Packing |
Gift Box Size :18x8.0x19.5 cm |
| Carton Box Size: 43x38x41 cm |
| 1 gift box : 1 Unit |
| 1 Carton Box : 20 sets |
| Gross Weight : 24KGs/ carton |
| Net weight : 23KGs/Carton |
